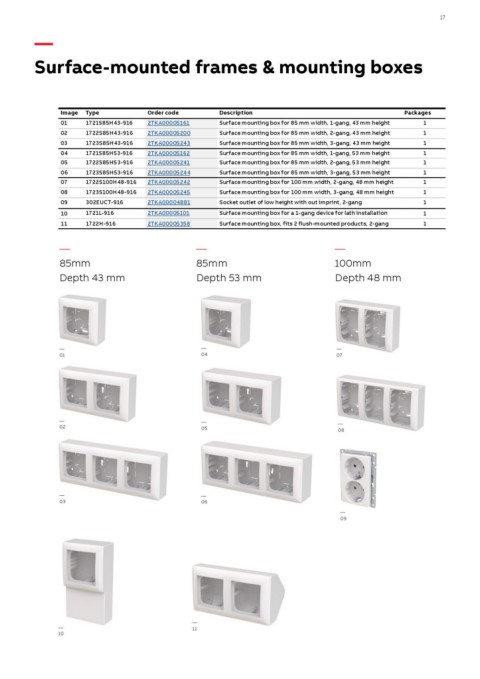

Surface-mounted frames & mounting boxes

Image  Type             Order code                                                     Description                                                                                  Packages
01     1721S85H43-916   2TK A0 0 0 05161                                               Surface mounting box for 85 mm width, 1-gang, 43 mm height                                             1
02     1722S85H43-916   2TKA00005200                                                   Surface mounting box for 85 mm width, 2-gang, 43 mm height                                             1
03     1723S85H43-916   2TK A0 0 0 05243                                               Surface mounting box for 85 mm width, 3-gang, 43 mm height                                             1
04     1721S85H53-916   2TK A0 0 0 05162                                               Surface mounting box for 85 mm width, 1-gang, 53 mm height                                             1
05     1722S85H53-916   2TK A0 0 0 05241                                               Surface mounting box for 85 mm width, 2-gang, 53 mm height                                             1
06     1723S85H53-916   2TK A0 0 0 0524 4                                              Surface mounting box for 85 mm width, 3-gang, 53 mm height                                             1
07     1722S100H48-916  2TK A0 0 0 05242                                               Surface mounting box for 100 mm width, 2-gang, 48 mm height                                            1
08     1723S100H48-916  2TK A0 0 0 05245                                               Surface mounting box for 100 mm width, 3-gang, 48 mm height                                            1
09     302EUCT-916      2TK A0 0 0 0 4 881                                             Socket outlet of low height with out imprint, 2-gang                                                   1

10     1721L-916        2TK A0 0 0 05101                                               Surface mounting box for a 1-gang device for lath installation                                         1
11     1722H-916        2TK A0 0 0 05358                                               Surface mounting box, fits 2 flush-mounted products, 2-gang                                            1

—                                           —                                          —
85mm                                        85mm                                       100mm
Depth 43 mm                                 Depth 53 mm                                Depth 48 mm

— ——
