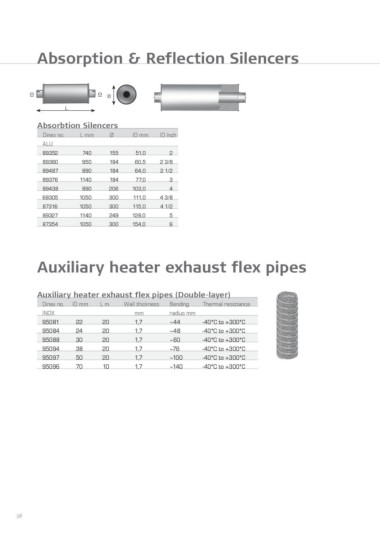

Absorption & Reflection Silencers

ID
ID
Ø
L

Absorbtion Silencers

Dinex no. L mm Ø ID mm ID Inch

ALU

89352 740 155 51,0 2

89360 950 184 60,5 2 3/8

89487 890 184 64,0 2 1/2

89376 1140 184 77,0 3

89438 890 206 103,0 4

68305 1050 300 111,0 4 3/8

87316 1050 300 115,0 4 1/2

89327 1140 249 128,0 5

87354 1050 300 154,0 6

Auxiliary heater exhaust flex pipes

Auxiliary heater exhaust flex pipes (Double-layer)

Dinex no. ID mm L m Wall thickness Bending Thermal resistance
INOX mm radius mm
95081 22 20 1,7 ~44 -40°C to +300°C
95084 24 20 1,7 ~48 -40°C to +300°C
95088 30 20 1,7 ~60 -40°C to +300°C
95094 38 20 1,7 ~76 -40°C to +300°C
95097 50 20 1,7 ~100 -40°C to +300°C
95096 70 10 1,7 ~140 -40°C to +300°C

38
