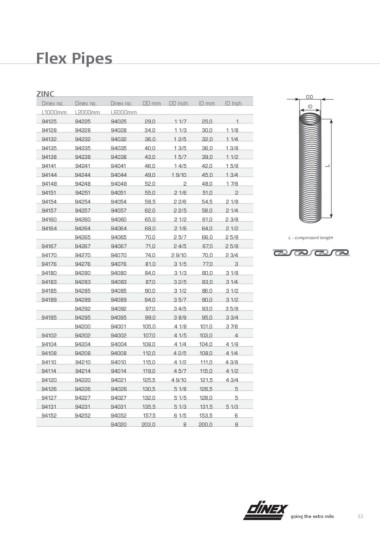

P. 33
Flex Pipes
ZINC OD
ID
Dinex no. Dinex no. Dinex no. OD mm OD Inch ID mm ID Inch
L - compressed length
L1000mm L2000mm L6000mm
94125 94225 94025 29,0 1 1/7 25,0 1
94128 94228 94028 34,0 1 1/3 30,0 1 1/8
94132 94232 94032 36,0 1 2/5 32,0 1 1/4
94135 94235 94035 40,0 1 3/5 36,0 1 3/8
94138 94238 94038 43,0 1 5/7 39,0 1 1/2
94141 94241 94041 46,0 1 4/5 42,0 1 5/8 L
94144 94244 94044 49,0 1 9/10 45,0 1 3/4
94148 94248 94048 52,0 2 48,0 1 7/8
94151 94251 94051 55,0 2 1/6 51,0 2
94154 94254 94054 58,5 2 2/6 54,5 2 1/8
94157 94257 94057 62,0 2 2/5 5 8,0 2 1/4
94160 94260 94060 65,0 2 1/2 6 1,0 2 3/8
94164 94264 94064 68,0 2 1/6 6 4,0 2 1/2
94265 94065 70,0 2 5/7 66,0 2 5/8
94167 94267 94067 71,0 2 4/5 67,0 2 5/8
94170 94270 94070 74,0 2 9/10 7 0,0 2 3/4
94176 94276 94076 81,0 3 1/5 7 7,0 3
94180 94280 94080 84,0 3 1/3 80,0 3 1/8
94183 94283 94083 87,0 3 2/5 83,0 3 1/4
94185 94285 94085 90,0 3 1/2 86,0 3 1/2
94189 94289 94089 94,0 3 5/7 90,0 3 1/2
94292 94092 97,0 3 4/5 93,0 3 5/8
94195 94295 94095 99,0 3 8/9 95,0 3 3/4
94200 94001 105,0 4 1/8 101,0 3 7/8
94102 94202 94002 107,0 4 1/5 103,0 4
94104 94204 94004 108,0 4 1/4 104,0 4 1/8
94108 94208 94008 112,0 4 2/5 108,0 4 1/4
94110 94210 94010 115,0 4 1/2 111,0 4 3/8
94114 94214 94014 119,0 4 5/7 115,0 4 1/2
94120 94220 94021 125,5 4 9/10 121,5 4 3/4
94126 94226 94026 130,5 5 1/8 126,5 5
94127 94227 94027 132,0 5 1/5 128,0 5
94131 94231 94031 135,5 5 1/3 131,5 5 1/3
94152 94252 94052 157,5 6 1/5 153,5 6
94020 203,0 8 200,0 8
