P. 32

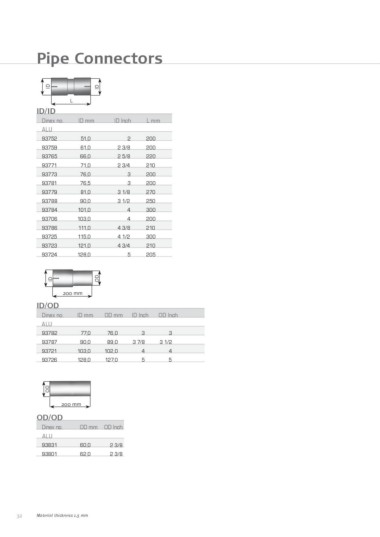

Pipe Connectors
OD ID ID L
OD ID
ID/ID
Dinex no. ID mm ID Inch L mm
ALU
93752 51,0 2 2 00
93759 61,0 2 3/8 200
93765 66,0 2 5/8 220
93771 71,0 2 3/4 210
93773 76,0 3 200
93781 76,5 3 2 00
93779 81,0 3 1/8 270
93788 90,0 3 1/2 250
93784 101,0 4 3 00
93706 103,0 4 200
93786 111,0 4 3/8 2 10
93725 115,0 4 1/2 300
93723 121,0 4 3/4 210
93724 128,0 5 2 05
200 mm
ID/OD
Dinex no. ID mm OD mm ID Inch OD Inch
ALU
93782 77,0 76,0 3 3
93787 90,0 89,0 3 7/8 3 1/2
93721 103,0 102,0 4 4
93726 128,0 127,0 5 5
200 mm
OD/OD
Dinex no. OD mm OD Inch
ALU
93831 60, 0 2 3/ 8
93801 62, 0 2 3/8
32 Material thickness 1,5 mm
