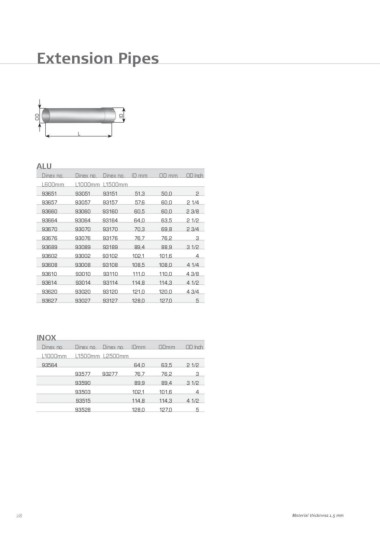

OD Extension Pipes
ID
L

ALU

Dinex no. Dinex no. Dinex no. ID mm OD mm OD Inch
L600mm L1000mm L1500mm
93651 93051 93151 51,3 50,0 2
93657 93057 93157 57,6 60,0 2 1/4
93660 93060 93160 60,5 60,0 2 3/8
93664 93064 93164 64,0 63,5 2 1/2
93670 93070 93170 70,3 69,8 2 3/4
93676 93076 93176 76,7 76,2 3
93689 93089 93189 89,4 88,9 3 1/2
93602 93002 93102 102,1 101,6 4
93608 93008 93108 108,5 108,0 4 1/4
93610 93010 93110 111,0 110,0 4 3/8
93614 93014 93114 114,8 114,3 4 1/2
93620 93020 93120 121,0 120,0 4 3/4
93627 93027 93127 128,0 127,0 5

INOX

Dinex no. Dinex no. Dinex no. IDmm ODmm OD Inch
L1000mm L1500mm L2500mm
93564 64,0 63,5 2 1/2
93577 93277 76,7 76,2 3
93590 89,9 89,4 3 1/2
93503 102,1 101,6 4
93515 114,8 114,3 4 1/2
93528 128,0 127,0 5

28 Material thickness 1,5 mm
