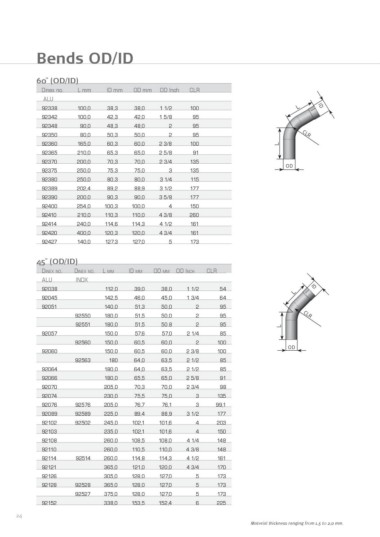

Bends OD/ID

60˚ (OD/ID)

Dinex no. L mm ID mm OD mm OD Inch CLR

ALU

92338 100,0 38,3 38,0 1 1/2 100 L ID
ID
92342 100,0 42,3 42,0 1 5/8 95 CLR
OD
92348 90,0 48,3 48,0 2 95
CLR
92350 80,0 50,3 50,0 2 95 OD

92360 165,0 60,3 60,0 2 3/8 100 Material thickness ranging from 1,5 to 2,0 mm.LL
L
92365 210,0 65,3 65,0 2 5/8 91

92370 200,0 70,3 70,0 2 3/4 135

92375 250,0 75,3 75,0 3 135

92380 250,0 80,3 80,0 3 1/4 115

92389 202,4 89,2 88,9 3 1/2 177

92390 200,0 90,3 90,0 3 5/8 177

92400 254,0 100,3 100,0 4 150

92410 210,0 110,3 110,0 4 3/8 260

92414 240,0 114,6 114,3 4 1/2 161

92420 400,0 120,3 120,0 4 3/4 161

92427 140,0 127,3 127,0 5 173

45˚ (OD/ID)

Dinex no. Dinex no. L mm ID mm OD mm OD Inch CLR

ALU INOX

92038 112,0 39,0 38,0 1 1/2 54

92045 142,5 46,0 45,0 1 3/4 64

92051 140,0 51,3 50,0 2 95

92550 180,0 51,5 50,0 2 95

92551 180,0 51,5 50.8 2 95

92057 150,0 57,6 57,0 2 1/4 85

92560 150,0 60,5 60,0 2 100

92060 150,0 60,5 60,0 2 3/8 100

92563 180 64,0 63,5 2 1/2 85

92064 180,0 64,0 63,5 2 1/2 85

92066 180,0 65,5 65,0 2 5/8 91

92070 205,0 70,3 70,0 2 3/4 98

92074 230,0 75,5 75,0 3 135

92076 92576 205,0 76,7 76,1 3 99,1

92089 92589 225,0 89,4 88,9 3 1/2 177

92102 92502 245,0 102,1 101,6 4 203

92103 235,0 102,1 101,6 4 150

92108 260,0 108,5 108,0 4 1/4 148

92110 260,0 110,5 110,0 4 3/8 148

92114 92514 260,0 114,8 114,3 4 1/2 161

92121 365,0 121,0 120,0 4 3/4 170

92126 305,0 128,0 127,0 5 173

92128 92528 365,0 128,0 127,0 5 173

92527 375,0 128,0 127,0 5 173

92152 338,0 153,5 152,4 6 225
