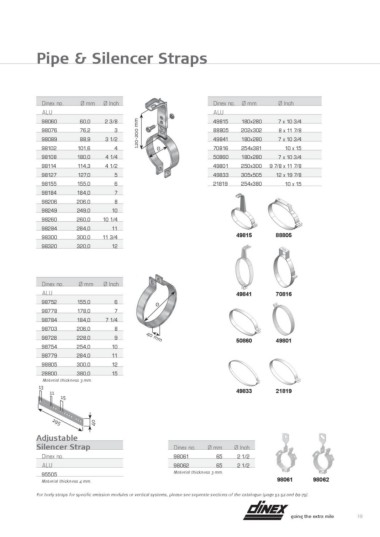

Pipe & Silencer Straps

Dinex no. Ø mm Ø Inch Dinex no. Ø mm Ø Inch

ALU ALU

98060 60,0 2 3/8 120-200 mm 49815 180x280 7 x 10 3/ 4

98076 76,2 3 88805 202x302 8 x 11 7/ 8

98089 88,9 3 1/2 49841 180x280 7 x 10 3/ 4

98102 101,6 4 Ø 70816 254x381 1 0 x 1 5

98108 180,0 4 1/4 50860 180x280 7 x 10 3/ 4

98114 114,3 4 1/2 49801 250x300 9 7/8 x 11 7/ 8

98127 127,0 5 49833 305x505 12 x 19 7/ 8

98155 155,0 6 21819 254x380 1 0 x 1 5

98184 184,0 7

98206 206,0 8

98249 249,0 10

98260 260,0 10 1/4

98284 284,0 11

98300 300,0 11 3/4 49815 88805

98320 320,0 12

Dinex no. Ø mm Ø Inch

ALU 49841 70816

98752 155,0 6 Ø
40 mm
98778 178,0 7

98784 184,0 7 1/4

98703 206,0 8

98728 228,0 9 50860 49801

98754 254,0 10

98779 284,0 11

98805 300,0 12

28800 380,0 15
Material thickness 3 mm.
49833 21819
13
11
15

295 40

Adjustable
Silencer Strap
Dinex no. Ø mm Ø Inch

Dinex no. 98061 65 2 1/2

ALU 98062 65 2 1/2

95505 Material thickness 3 mm.
Material thickness 4 mm.
98061 98062

For body straps for specific emission modules or vertical systems, please see seperate sections of the catalogue (page 51-52 and 60-75).
