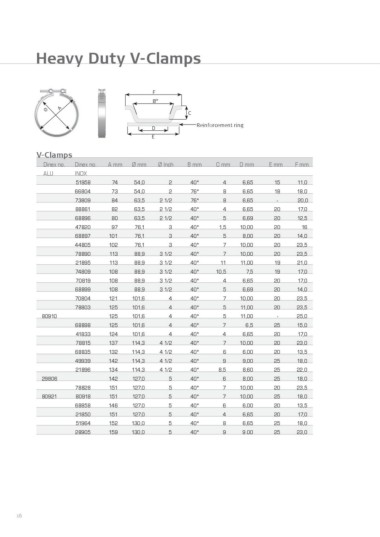

Heavy Duty V-Clamps
Ø F
A B°
C
D Reinforcement ring
E
V-Clamps
Dinex no. Dinex no. A mm Ø mm Ø Inch B mm C mm D mm E mm F mm
ALU INOX
51958 74 54,0 2 40° 4 6,65 15 11,0
66804 73 54,0 2 76° 8 6,65 18 18,0
73809 84 63,5 2 1/2 76° 8 6,65 - 20,0
88861 82 63,5 2 1/2 40° 4 6,65 20 17,0
68896 80 63,5 2 1/2 40° 5 6,69 20 12,5
47820 97 76,1 3 40° 1,5 10,00 20 16
68897 101 76,1 3 40° 5 8,00 20 14,0
44805 102 76,1 3 40° 7 10,00 20 23,5
78890 113 88,9 3 1/2 40° 7 10,00 20 23,5
21895 113 88,9 3 1/2 40° 11 11,00 19 21,0
74809 108 88,9 3 1/2 40° 10,5 7,5 19 17,0
70819 108 88,9 3 1/2 40° 4 6,65 20 17,0
68899 108 88,9 3 1/2 40° 5 6,69 20 14,0
70804 121 101,6 4 40° 7 10,00 20 23,5
78803 125 101,6 4 40° 5 11,00 20 23,5
80910 125 101,6 4 40° 5 11,00 - 25,0
68898 125 101,6 4 40° 7 6,5 25 15,0
41833 124 101,6 4 40° 4 6,65 20 17,0
78815 137 114,3 4 1/2 40° 7 10,00 20 23,0
68835 132 114,3 4 1/2 40° 6 6,00 20 13,5
49939 142 114,3 4 1/2 40° 9 9,00 25 18,0
21896 134 114,3 4 1/2 40° 8,5 8,60 25 22,0
29806 142 127,0 5 40° 6 8,00 25 18,0
78828 151 127,0 5 40° 7 10,00 20 23,5
80921 80918 151 127,0 5 40° 7 10,00 25 18,0
68858 146 127,0 5 40° 6 6,00 20 13,5
21850 151 127,0 5 40° 4 6,65 20 17,0
51964 152 130,0 5 40° 8 6,65 25 18,0
28905 159 130,0 5 40° 9 9.00 25 23,0
