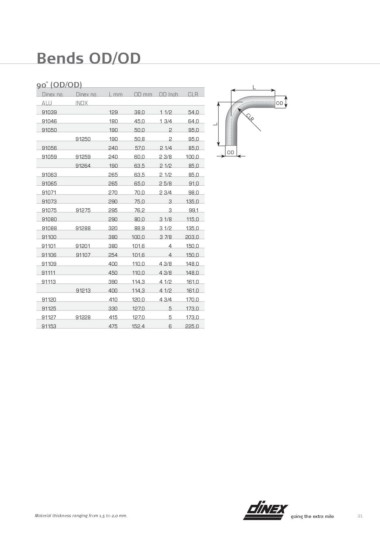

Bends OD/OD CLR L
OD
90˚ (OD/OD) L
OD
Dinex no. Dinex no. L mm OD mm OD Inch CLR
ALU INOX
91039 129 38,0 1 1/2 54,0
91046 180 45,0 1 3/4 64,0
91050 190 50,0 2 95,0
91250 190 50,8 2 95,0
91056 240 57,0 2 1/4 85,0
91059 91259 240 60,0 2 3/8 100,0
91264 190 63,5 2 1/2 85,0
91063 265 63,5 2 1/2 85,0
91065 265 65,0 2 5/8 91,0
91071 270 70,0 2 3/4 98,0
91073 290 75,0 3 135,0
91075 91275 295 76,2 3 99,1
91080 290 80,0 3 1/8 115,0
91088 91288 320 88,9 3 1/2 135,0
91100 380 100,0 3 7/8 203,0
91101 91201 380 101,6 4 150,0
91106 91107 254 101,6 4 150,0
91109 400 110,0 4 3/8 148,0
91111 450 110,0 4 3/8 148,0
91113 390 114,3 4 1/2 161,0
91213 400 114,3 4 1/2 161,0
91120 410 120,0 4 3/4 170,0
91125 330 127,0 5 173,0
91127 91228 415 127,0 5 173,0
91153 475 152,4 6 225,0

Material thickness ranging from 1,5 to 2,0 mm. going the extra mile 21
