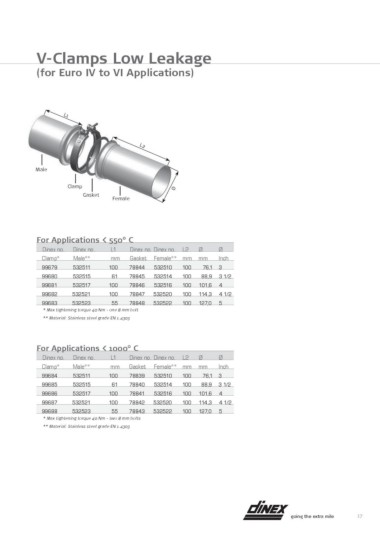

V-Clamps Low Leakage

(for Euro IV to VI Applications)

L1

L2

Male

Clamp Ø
Gasket
Female

For Applications < 550° C

Dinex no. Dinex no. L1 Dinex no. Dinex no. L2 Ø Ø
Inch
Clamp* Male** mm Gasket Female** mm mm 3
3 1/2
99679 532511 100 78844 532510 100 76,1 4
4 1/2
99680 532515 61 78845 532514 100 88,9 5

99681 532517 100 78846 532516 100 101,6

99682 532521 100 78847 532520 100 114,3

99683 532523 55 78848 532522 100 127,0

* Max tightening torque 40 Nm - one 8 mm bolt

** Material: Stainless steel grade EN 1.4303

For Applications < 1000° C

Dinex no. Dinex no. L1 Dinex no. Dinex no. L2 Ø Ø
Inch
Clamp* Male** mm Gasket Female** mm mm 3
3 1/2
99684 532511 100 78839 532510 100 76,1 4
4 1/2
99685 532515 61 78840 532514 100 88,9 5

99686 532517 100 78841 532516 100 101,6

99687 532521 100 78842 532520 100 114,3

99688 532523 55 78843 532522 100 127,0

* Max tightening torque 40 Nm - two 8 mm bolts

** Material: Stainless steel grade EN 1.4303

going the extra mile 17
