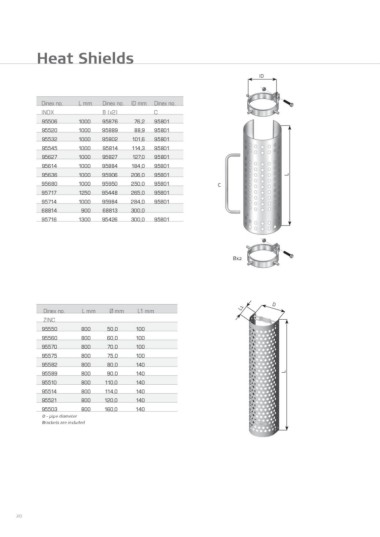

Heat Shields
ID
Dinex no. L mm Dinex no. ID mm Dinex no. C
Bx2
INOX B (x2) C
95506 1000 95876 76,2 95801
95520 1000 95889 88,9 95801
95532 1000 95802 101,6 95801
95545 1000 95814 114,3 95801
95627 1000 95827 127,0 95801
95614 1000 95884 184,0 95801
95636 1000 95906 206,0 95801 L1
LL
95680 1000 95950 250,0 95801
95717 1250 95448 265,0 95801
95714 1000 95984 284,0 95801
68814 900 68813 300,0
95716 1300 95426 300,0 95801
D
Dinex no. L mm Ø mm L1 mm
ZINC
95550 800 50,0 100
95560 800 60,0 100
95570 800 70,0 100
95575 800 75,0 100
95582 800 80,0 140
95589 800 90,0 140
95510 800 110,0 140
95514 800 114,0 140
95521 800 120,0 140
95503 800 160,0 140
Ø - pipe diameter
Brackets are included
