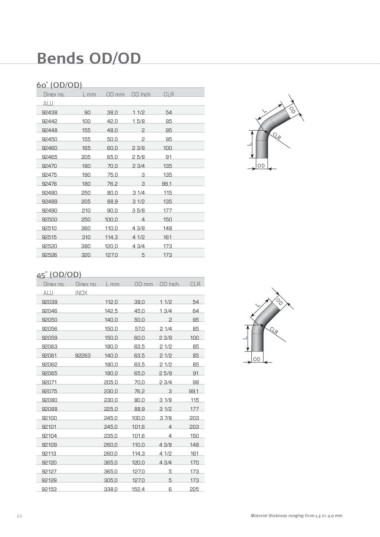

Bends OD/OD

60˚ (OD/OD)

Dinex no. L mm OD mm OD Inch CLR

ALU

92438 90 38,0 1 1/2 54 L OD
OD
92442 100 42,0 1 5/8 95 CLR
OD
92448 155 48,0 2 95
CLR
92450 155 50,0 2 95 OD

92460 165 60,0 2 3/8 100 LL Material thickness ranging from 1,5 to 2,0 mm.
L
92465 205 65,0 2 5/8 91

92470 180 70,0 2 3/4 135

92475 190 75,0 3 135

92476 180 76,2 3 99,1

92480 250 80,0 3 1/4 115

92489 205 88,9 3 1/2 135

92490 210 90,0 3 5/8 177

92500 250 100,0 4 150

92510 360 110,0 4 3/8 148

92515 310 114,3 4 1/2 161

92520 380 120,0 4 3/4 173

92526 320 127,0 5 173

45˚ (OD/OD)

Dinex no. Dinex no. L mm OD mm OD Inch CLR

ALU INOX

92039 112,0 38,0 1 1/2 54

92046 142,5 45,0 1 3/4 64

92050 140,0 50,0 2 95

92056 150,0 57,0 2 1/4 85

92059 150,0 60,0 2 3/8 100

92063 180,0 63,5 2 1/2 85

92061 92263 140,0 63,5 2 1/2 85

92062 180,0 63,5 2 1/2 85

92065 180,0 65,0 2 5/8 91

92071 205,0 70,0 2 3/4 98

92075 230,0 76,2 3 99,1

92080 230,0 80,0 3 1/8 115

92088 225,0 88,9 3 1/2 177

92100 245,0 100,0 3 7/8 203

92101 245,0 101,6 4 203

92104 235,0 101,6 4 150

92109 260,0 110,0 4 3/8 148

92113 260,0 114,3 4 1/2 161

92120 365,0 120,0 4 3/4 170

92127 365,0 127,0 5 173

92129 305,0 127,0 5 173

92153 338,0 152,4 6 225
