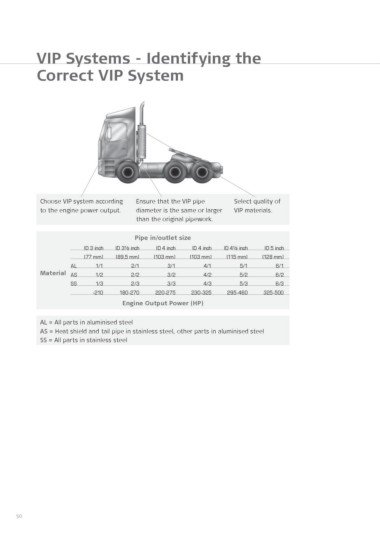

VIP Systems - Identifying the
Correct VIP System
Choose VIP system according Ensure that the VIP pipe Select quality of
to the engine power output. diameter is the same or larger VIP materials.
than the original pipework.
Pipe in/outlet size
ID 3 inch ID 3½ inch ID 4 inch ID 4 inch ID 4½ inch ID 5 inch
(77 mm) (89,5 mm) (103 mm) (103 mm) (115 mm) (128 mm)
AL 1/1 2/1 3/1 4/1 5/1 6/1
Material AS 1/2 2/2 3/2 4/2 5/2 6/2
SS 1/3 2/3 3/3 4/3 5/3 6/3
-210 180-270 220-275 230-325 295-460 325-500
Engine Output Power (HP)
AL = All parts in aluminised steel
AS = Heat shield and tail pipe in stainless steel, other parts in aluminised steel
SS = All parts in stainless steel
