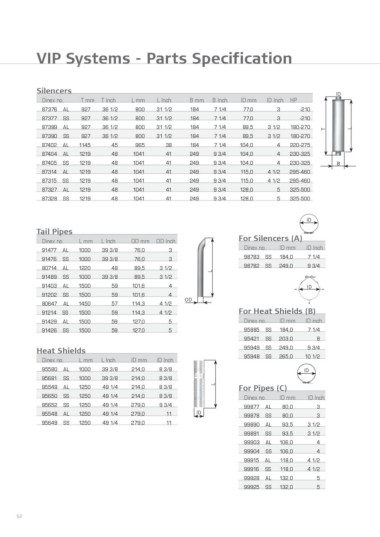

VIP Systems - Parts Specification

Silencers ID
B
Dinex no. T mm T Inch L mm L Inch B mm B Inch I D mm ID Inch HP

87376 AL 927 36 1/2 800 31 1/2 184 7 1/4 77,0 3 -21 0

87377 SS 927 36 1/2 800 31 1/2 184 7 1/4 77,0 3 -21 0

87389 AL 927 36 1/2 800 31 1/2 184 7 1/4 89,5 3 1/2 180 -27 0
LL
87390 SS 927 36 1/2 800 31 1/2 184 7 1/4 89,5 3 1/2 180 -27 0 T
L
87402 AL 1145 45 965 38 184 7 1/4 104,0 4 220 -27 5

87404 AL 1219 48 1041 41 249 9 3/4 104,0 4 230 -32 5

87405 SS 1219 48 1041 41 249 9 3/4 104,0 4 230 -32 5

87314 AL 1219 48 1041 41 249 9 3/4 115,0 4 1/2 295 -46 0

87315 SS 1219 48 1041 41 249 9 3/4 115,0 4 1/2 295 -46 0

87327 AL 1219 48 1041 41 249 9 3/4 128,0 5 325 -50 0

87328 SS 1219 48 1041 41 249 9 3/4 128,0 5 325 -50 0

Tail Pipes ID

Dinex no. L mm L Inch OD mm OD Inch For Silencers (A)

91477 AL 1000 39 3/8 76,0 3 Dinex no. ID mm ID Inch
98783 SS 184,0 7 1/4
91476 SS 1000 39 3/8 76,0 3 98782 SS 249,0 9 3/4

80714 AL 1220 48 89,5 3 1/2 ID

91489 SS 1000 39 3/8 89,5 3 1/2

91403 AL 1500 59 101,6 4

91202 SS 1500 59 101,6 4 OD

80647 AL 1450 57 114,3 4 1/2 For Heat Shields (B)

91214 SS 1500 59 114,3 4 1/2

91429 AL 1500 59 127,0 5 Dinex no. ID mm ID inch

91426 SS 1500 59 127,0 5 95885 SS 184,0 7 1/4

95421 SS 203,0 8

Heat Shields 95949 SS 249,0 9 3/4

Dinex no. L mm L Inch ID mm ID Inch 95948 SS 265,0 10 1/2

95580 AL 1000 39 3/8 214,0 8 3/8 ID

95681 SS 1000 39 3/8 214,0 8 3/8

95549 AL 1250 49 1/4 214,0 8 3/8 For Pipes (C)

95650 SS 1250 49 1/4 214,0 8 3/8 Dinex no. ID mm I D Inch
99877 AL 80,0 3
95652 SS 1250 49 1/4 279,0 9 3/4 99878 SS 80,0 3
99890 AL 93,5
95548 AL 1250 49 1/4 279,0 11 ID 99891 SS 93,5 3 1/2
99903 AL 106,0 3 1/2
95649 SS 1250 49 1/4 279,0 11 99904 SS 106,0
99915 AL 118,0 4
99916 SS 118,0 4
99928 AL 132,0 4 1/2
99925 SS 132,0 4 1/2
5
