P. 55

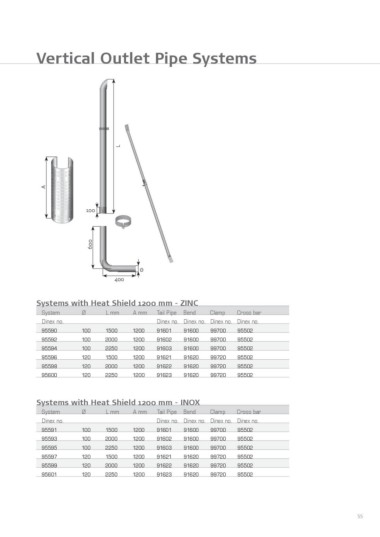

Vertical Outlet Pipe Systems
A
L
100600
Ø
400
Systems with Heat Shield 1200 mm - ZINC
System Ø L mm A mm Tail Pipe Bend Clamp Cross bar
Dinex no. Dinex no. Dinex no. Dinex no. Dinex no.
95590 100 1500 1200 91601 91600 99700 95502
95592 100 2000 1200 91602 91600 99700 95502
95594 100 2250 1200 91603 91600 99700 95502
95596 120 1500 1200 91621 91620 99720 95502
95598 120 2000 1200 91622 91620 99720 95502
95600 120 2250 1200 91623 91620 99720 95502
Systems with Heat Shield 1200 mm - INOX
System Ø L mm A mm Tail Pipe Bend Clamp Cross bar
Dinex no. Dinex no. Dinex no. Dinex no. Dinex no.
95591 100 1500 1200 91601 91600 99700 95502
95593 100 2000 1200 91602 91600 99700 95502
95595 100 2250 1200 91603 91600 99700 95502
95597 120 1500 1200 91621 91620 99720 95502
95599 120 2000 1200 91622 91620 99720 95502
95601 120 2250 1200 91623 91620 99720 95502
55
