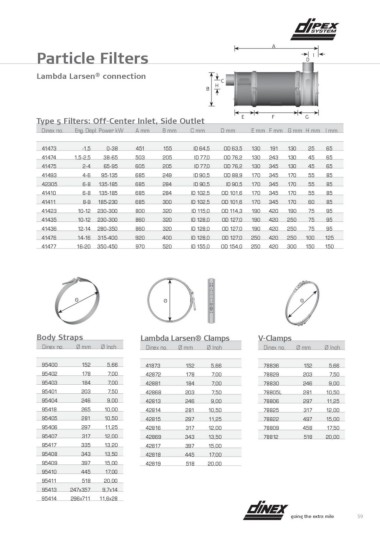

Particle Filters A
I
Lambda Larsen® connection
D

C
BH

Type 5 Filters: Off-Center Inlet, Side Outlet E F G

Dinex no. Eng. Displ. Power kW A mm B mm C mm D mm E mm F mm G mm H mm I mm

41473 -1,5 0-38 451 155 ID 64,5 OD 63,5 1 30 191 1 30 2 5 65

41474 1,5-2,5 38-65 503 205 ID 77,0 OD 76,2 1 30 243 1 30 4 5 65

41475 2-4 65-95 605 205 ID 77,0 OD 76,2 1 30 345 1 30 4 5 65

41493 4-6 95-135 685 249 ID 90, 5 OD 88,9 1 70 345 170 5 5 85

42305 6-8 135-185 685 284 ID 90,5 ID 9 0,5 17 0 345 17 0 55 85

41410 6-8 135-185 685 284 ID 1 02,5 OD 10 1,6 17 0 345 17 0 55 8 5

41411 8-9 185-230 685 300 ID 102,5 OD 1 01,6 17 0 345 17 0 60 8 5

41423 10-12 230-300 800 320 ID 115,0 OD 1 14,3 19 0 420 19 0 75 95

41435 10-12 230-300 860 320 ID 1 28,0 OD 12 7,0 19 0 420 25 0 75 9 5

41436 12-14 280-350 860 320 ID 1 28,0 OD 1 27,0 19 0 420 25 0 75 95

41476 14-16 315-400 920 400 ID 1 28,0 O D 127 ,0 250 42 0 250 1 00 1 25

41477 16-20 350-450 970 520 ID 155,0 OD 1 54,0 2 50 420 3 00 15 0 1 50

ØØ Ø

Body Straps Lambda Larsen® Clamps V-Clamps

Dinex no. Ø mm Ø Inch Dinex no. Ø mm Ø Inch Dinex no. Ø mm Ø Inch

95400 152 5,66
95402 178 7,00 41873 152 5,66 78836 152 5,66
95403 184 7,00 42872 178 7,00 78829 203 7,50
95401 203 7,50 42881 184 7,00 78830 246 9,00
95404 246 9,00 42868 203 7,50 78805L 281 10,50
95418 265 10,00 42813 246 9,00 78806 297 11,25
95405 281 10,50 42814 281 10,50 78825 317 12,00
95406 297 11,25 42815 297 11,25 78822 497 15,00
95407 317 12,00 42816 317 12,00 78809 458 17,50
95417 335 13,20 42869 343 13,50 78812 518 20,00
95408 343 13,50 42817 397 15,00
95409 397 15,00 42818 445 17,00
95410 445 17,00 42819 518 20,00
95411 518 20,00
95413 247x357 9,7x14
95414 296x711 11,6x28
