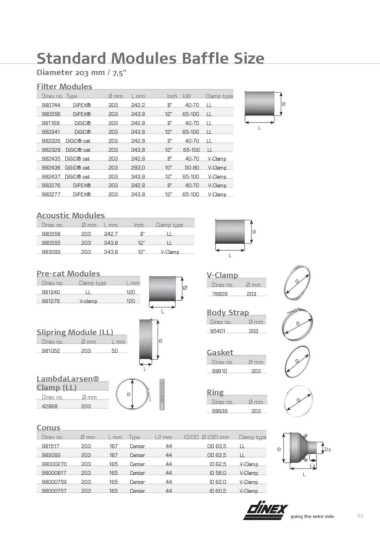

Standard Modules Baffle Size

Diameter 203 mm / 7,5"

Filter Modules

Dinex no. Type Ø mm L mm Inch kW Clamp type

980744 DiPEX® 203 242,2 8" 40-70 LL Ø

980556 DiPEX® 203 343,8 12" 65-100 LL

981168 DiSiC® 203 242,8 8" 40-70 LL L

982341 DiSiC® 203 343,8 12" 65-100 LL

982326 DiSiC® cat 203 242,8 8" 40-70 LL

982328 DiSiC® cat 203 343,8 12" 65-100 LL

982435 DiSiC® cat 203 242,8 8" 40-70 V-Clamp

982436 DiSiC® cat 203 293,0 10" 50-80 V-Clamp

982437 DiSiC® cat 203 343,8 12" 65-100 V-Clamp

982276 DiPEX® 203 242,8 8" 40-70 V-Clamp

982277 DiPEX® 203 343,8 12" 65-100 V-Clamp

Acoustic Modules

Dinex no. Ø mm L mm Inch Clamp type

980558 203 242,7 8” LL Ø
L
980555 203 343,8 12” LL

983093 203 343,8 12" V-Clamp

Pre-cat Modules V-Clamp

Dinex no. Clamp type L mm Ø Dinex no. Ø mm Ø
120
981240 LL 120 78829 203 Ø
Ø
981276 V-clamp
Ø
L Body Strap
D2
Dinex no. Ø mm L2
L
Slipring Module (LL) 95401 203

Dinex no. Ø mm L mm Ø

981052 203 50 Gasket

Dinex no. Ø mm

L 98910 203
Ø
LambdaLarsen® Ring
Clamp (LL)
Dinex no.
Dinex no. Ø mm Ø mm
98939 203
42868 203

Conus

Dinex no. Ø mm L mm Type L2 mm ID/OD Ø (D2) mm Clamp type

981517 203 167 Center 44 OD 63,5 LL Ø

982093 203 167 Center 44 OD 63,5 LL

98000270 203 165 Center 44 ID 62,5 V-Clamp

98000817 203 165 Center 44 ID 58,0 V-Clamp

98000759 203 165 Center 44 ID 62,0 V-Clamp

98000757 203 165 Center 44 ID 60,5 V-Clamp
