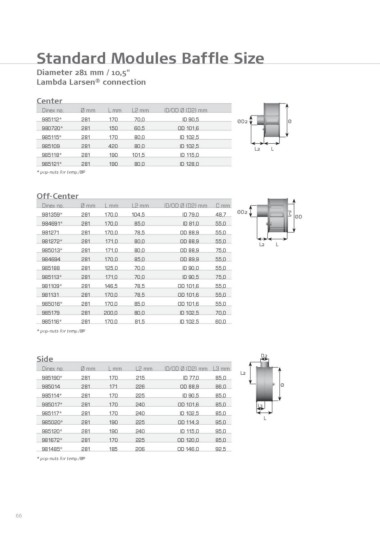

Standard Modules Baffle Size

Diameter 281 mm / 10,5"
Lambda Larsen® connection

Center

Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm

985112* 281 170 70,0 ID 90,5 ØD2 Ø
980720* 281 150 60,5 OD 101,6

985115* 281 170 80,0 ID 102,5

985109 281 420 80,0 ID 102,5 L2 L
985118* 281 190 101,5 ID 115,0

985121* 281 190 80,0 ID 128,0

* pop-nuts for temp./BP

Off-Center

Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm C mm C ØD
981359* 281 170,0 104,5 ID 79,0 48,7 ØD2
984691* 281 170,0 85,0 ID 81,0
55,0

981271 281 170,0 78,5 OD 88,9 55,0

981272* 281 171,0 80,0 OD 88,9 55,0 L2 L
985013* 281 171,0 80,0 OD 88,9 75,0

984694 281 170,0 85,0 OD 89,9 55,0

985188 281 125,0 70,0 ID 90,0 55,0

985113* 281 171,0 70,0 ID 90,5 75,0

981109* 281 146,5 78,5 OD 101,6 55,0

981131 281 170,0 78,5 OD 101,6 55,0

985016* 281 170,0 85,0 OD 101,6 55,0

985179 281 200,0 80,0 ID 102,5 70,0

985116* 281 170,0 81,5 ID 102,5 60,0

* pop-nuts for temp./BP

Side D2

Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm L3 mm L2 L3
L
985190* 281 170 215 ID 77,0 85,0

985014 281 171 226 OD 88,9 86,0 Ø

985114* 281 170 225 ID 90,5 85,0

985017* 281 170 240 OD 101,6 85,0

985117* 281 170 240 ID 102,5 85,0

985020* 281 190 225 OD 114,3 95,0

985120* 281 190 240 ID 115,0 95,0

981672* 281 170 225 OD 120,0 85,0

981485* 281 185 206 OD 146,0 92,5

* pop-nuts for temp./BP

66
