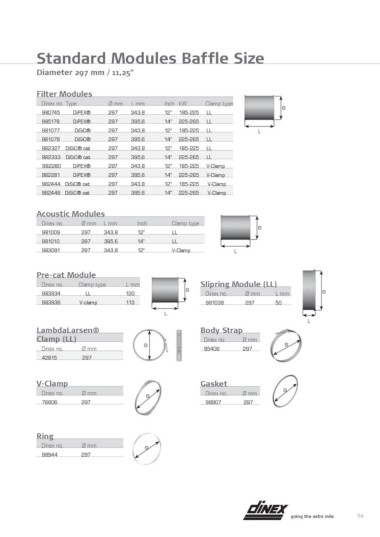

Standard Modules Baffle Size

Diameter 297 mm / 11,25"

Filter Modules

Dinex no. Type Ø mm L mm Inch kW Clamp type Ø

980745 DiPEX® 297 343,8 12” 185-225 LL

985178 DiPEX® 297 395,6 14” 225-265 LL

981077 DiSiC® 297 343,8 12” 185-225 LL L

981078 DiSiC® 297 395,6 14” 225-265 LL

982327 D iSiC® cat 297 343,8 12” 185-225 LL

982333 DiSiC® cat 297 395,6 14” 225-265 LL

982280 DiPEX® 297 343,8 12" 185-225 V-Clamp

982281 DiPEX® 297 395,6 14" 225-265 V-Clamp

982444 DiSiC® cat 297 343,8 12" 185-225 V-Clamp

982446 DiSiC® cat 297 395,6 14" 225-265 V-Clamp

Acoustic Modules

Dinex no. Ø mm L mm I nch Clamp type Ø
L
981009 297 343,8 12” LL

981010 297 395,6 14” LL

983091 297 343,8 12" V-Clamp

Pre-cat Module

Dinex no. Clamp type L mm Slipring Module (LL)
120 Ø Dinex no.
983934 LL 113 Ø mm L mm Ø
L
983936 V-clamp 981038 297 50

L

LambdaLarsen® Body Strap
Clamp (LL)
Ø Dinex no. Ø mm Ø

Dinex no. Ø mm 95406 297

42815 297

V-Clamp Ø mm Ø Gasket Ø mm Ø
297 297
Dinex no. Dinex no.

78806 98907

Ring Ø mm Ø
297
Dinex no.

98944

going the extra mile 69
