P. 72

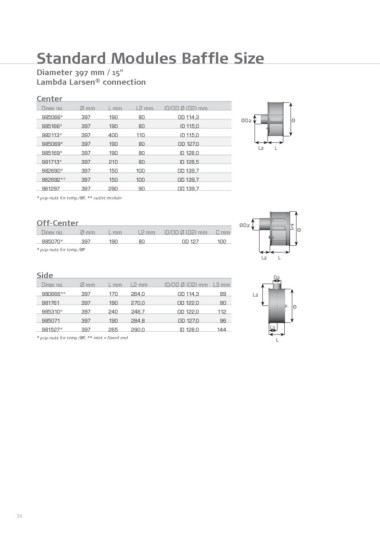

Standard Modules Baffle Size
Diameter 397 mm / 15"
Lambda Larsen® connection
Center
Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm
985066* 397 190 80 OD 114,3 ØD2 Ø
L2
985166* 397 190 80 ID 115,0
982113* 397 400 110 ID 115,0
985069* 397 190 80 OD 127,0 L
985169* 397 190 80 ID 128,0
981713* 397 210 80 ID 128,5
982690* 397 150 100 OD 139,7
982692** 397 150 100 OD 139,7
981297 397 290 90 OD 139,7
* pop-nuts for temp./BP, ** outlet module
Off-Center ØD2 CØ
Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm C mm
985070* 397 190 80 OD 127 100
* pop-nuts for temp./BP
L2 L
Side D2
L2
Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm L3 mm
Ø
980666** 397 170 264,0 OD 114,3 89
L3
981761 397 190 270,0 OD 122,0 90 L
985310* 397 240 246,7 OD 122,0 112
985071 397 190 284,8 OD 127,0 96
981527* 397 265 290,0 ID 128,0 144
* pop-nuts for temp./BP, ** inlet = flared end
72
