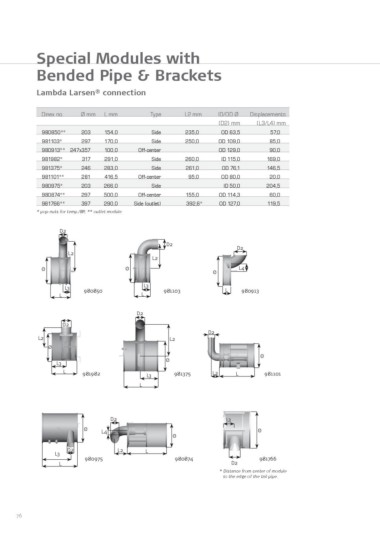

Special Modules with
Bended Pipe & Brackets

Lambda Larsen® connection

Dinex no. Ø mm L mm Type L2 mm I D/OD Ø Displacements

(D2) mm (L3/L4) mm

980850** 203 154 ,0 Side 235,0 OD 6 3,5 57,0

981103* 297 170,0 Side 250,0 O D 10 9,0 85,0

980913** 247x357 100,0 Of f-cen ter OD 1 29,0 90,0

981982* 317 291,0 Side 260,0 ID 1 15,0 169,0

981375* 246 283,0 Side 261,0 OD 7 6,1 146,5

981101** 281 416,5 O ff-ce nter 95,0 OD 8 0,0 20,0

980975* 203 266,0 S ide ID 50,0 204,5

980874** 297 500,0 O ff-ce nter 155,0 O D 11 4,3 60,0

981766** 397 290,0 Sid e (ou tlet) 392,6* OD 12 7,0 119,5

* pop-nuts for temp./BP, ** outlet module

D2

L2 D2 D2
Ø L2 L4
Ø Ø
L3 980850 L 980913
L L3
L 981103

D2

D2

L2 L2 D2
Ø L2 L

L3 981982 L3 Ø Ø
L L 981375 981101

D2 Ø L3
Ø L4 980874 Ø

L3 D2 L2 L 981766
L D2
980975
* Distance from center of module
to the edge of the tail pipe.
