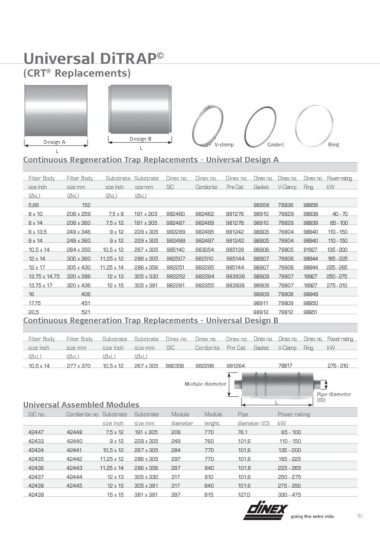

Universal DiTRAP©

(CRT® Replacements)

Design A Design B V-clamp Gasket Ring
L L

Continuous Regeneration Trap Replacements - Universal Design A

Filter Body Filter Body Substrate Substrate Dinex no. Dinex no. Dinex no. Dine x no. Dinex no. Din ex no . Powerrating

size Inch size mm size Inch size mm SIC Cordiorite Pre Cat Ga sket V-Clamp Ring kW

(ØxL) (ØxL) (ØxL) (ØxL)

5,66 152 98958 78836 98959

8 x 10 206 x 259 7,5 x 8 1 91 x 203 982460 982462 981276 9891 0 78 829 98939 40 - 70

8 x 14 206 x 360 7,5 x 12 191 x 305 982487 982489 981276 9891 0 78 829 98939 65 - 100

9 x 13.5 249 x 346 9 x 12 2 29 x 305 982289 982495 981242 9890 5 78 804 98940 110 - 150

9 x 14 249 x 360 9 x 12 229 x 305 982499 982497 981242 9890 5 78 804 98940 110 - 150

10,5 x 14 284 x 350 10,5 x 12 267 x 305 985140 983054 985139 9890 6 78 805 81927 135 - 200

12 x 14 300 x 360 11,25 x 12 286 x 305 982507 982510 985144 9890 7 78 806 98944 185 - 225

12 x 17 305 x 430 11,25 x 14 286 x 356 982251 982295 985144 9890 7 78 806 98944 225 - 265

13,75 x 14,75 320 x 386 12 x 13 305 x 330 982252 982294 983938 9890 8 78 807 18927 250 - 275

13,75 x 17 320 x 436 12 x 15 305 x 381 982291 982355 983938 9890 8 78 807 18927 275 - 310

16 406 98909 78808 98949

17,75 451 98911 78809 98950

20,5 521 98912 78812 98951

Continuous Regeneration Trap Replacements - Universal De si gn B

Filter Body Filter Body Substrate Substrate Dinex no. Dinex no. Dinex no. Dinex no. Dinex no. Dinex no. Power rating

size Inch size mm size Inch size mm SIC Cordiorite Pre Cat Gasket V-Clamp Ring kW

(ØxL) (ØxL) (ØxL) (ØxL)

10,5 x 14 277 x 370 10,5 x 12 267 x 305 982356 982296 981264 78817 275 - 310

Module diameter

Universal Assembled Modules Pipe diameter
L (ID)

SiC no. Cordierite no. Substrate Substrate Module Module Pipe Power raiting
diameter (ID) kW
size Inch size mm diameter lenght 76.1
101,6 65 - 100
42447 42448 7,5 x 12 191 x 305 206 770 101,6 110 - 150
101,6 135 - 200
42433 42440 9 x 12 229 x 305 249 760 101,6 185 - 225
101,6 225 - 265
42434 42441 10,5 x 12 2 67 x 305 284 770 101,6 250 - 275
127,0 275 - 350
42435 42442 11,25 x 12 286 x 305 297 770 330 - 475

42436 42443 11,25 x 14 286 x 356 297 840

42437 42444 12 x 13 305 x 330 317 810

42438 42445 12 x 15 305 x 381 317 840

42439 15 x 15 381 x 381 397 915
