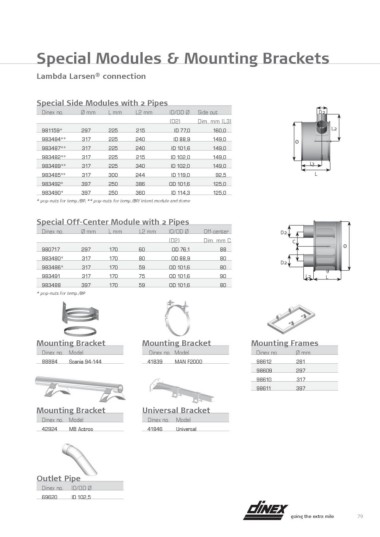

Page 79 - pakoputkistojen_yleisosat

Special Modules & Mounting Brackets

Lambda Larsen® connection

Special Side Modules with 2 Pipes

Dinex no. Ø mm L mm L2 mm ID/OD Ø Side out D2
L2
(D2) Dim. mm (L3)
Ø
981159* 297 225 215 ID 77,0 160,0
L3
983484** 317 225 240 ID 88,9 149,0 L

983487** 317 225 240 ID 101,6 149,0

983482** 317 225 215 ID 102,0 149,0

983489** 317 225 340 ID 102,0 149,0

983485** 317 300 244 ID 119,0 92,5

983492* 397 250 386 OD 101,6 125,0

983490* 397 250 360 ID 114,3 125,0

* pop-nuts for temp./BP, ** pop-nuts for temp./BP/ intent module and dome

Special Off-Center Module with 2 Pipes

Dinex no. Ø mm L mm L2 mm ID/OD Ø Off-center D2
C
(D2) Dim. mm C Ø

980717 297 170 60 OD 76,1 88

983480* 317 170 80 OD 88,9 80 D2
L2 L
983486* 317 170 59 OD 101,6 80

983491 317 170 75 OD 101,6 90

983488 397 170 59 OD 101,6 80

* pop-nuts for temp./BP

Mounting Bracket Mounting Bracket Mounting Frames

Dinex no. Model Dinex no. Model Dinex no. Ø mm
88884 Scania 94-144 41839 MAN F2000 98612 281
98609 297
Mounting Bracket Universal Bracket 98610 317
98611 397
Dinex no. Model Dinex no. Model
42924 MB Actros 41846 Universal

Outlet Pipe

Dinex no. ID/OD Ø

69620 ID 102,5

going the extra mile 79
