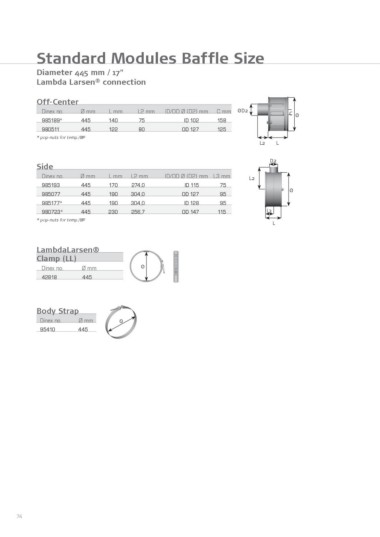

Standard Modules Baffle Size

Diameter 445 mm / 17"
Lambda Larsen® connection

Off-Center

Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm C mm ØD2 CØ

985189* 445 140 75 ID 102 158

980511 445 122 80 OD 127 125

* pop-nuts for temp./BP

L2 L

Side D2
L2
Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm L3 mm
Ø
985193 445 170 274,0 ID 115 75
L3
985077 445 190 304,0 OD 127 95 L

985177* 445 190 304,0 ID 128 95

980723* 445 230 256,7 OD 147 115

* pop-nuts for temp./BP

LambdaLarsen®
Clamp (LL)

Dinex no. Ø mm Ø

42818 445

Body Strap

Dinex no. Ø mm Ø

95410 445
