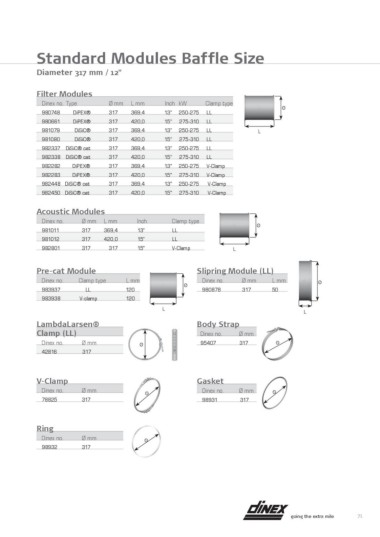

Standard Modules Baffle Size

Diameter 317 mm / 12"

Filter Modules

Dinex no. Type Ø mm L mm Inch kW Clamp type Ø
L
980748 DiPEX® 317 369,4 13” 250-275 LL

980661 DiPEX® 317 420,0 15” 275-310 LL

981079 DiSiC® 317 369,4 13” 250-275 LL

981080 DiSiC® 317 420,0 15” 275-310 LL

982337 DiSiC® cat 317 369,4 13” 250-275 LL

982338 DiSiC® cat 317 420,0 15” 275-310 LL

982282 DiPEX® 317 369,4 13" 250-275 V-Clamp

982283 DiPEX® 317 420,0 15" 275-310 V-Clamp

982448 DiSiC® cat 317 369,4 13" 250-275 V-Clamp

982450 DiSiC® cat 317 420,0 15" 275-310 V-Clamp

Acoustic Modules

Dinex no. Ø mm L mm Inch Clamp type Ø
L
981011 317 369,4 13” LL

981012 317 420,0 15” LL

982801 317 317 15" V-Clamp

Pre-cat Module Slipring Module (LL)

Dinex no. Clamp type L mm Dinex no. Ø mm L mm Ø
120 Ø 980878 317 50 L
983937 LL 120

983938 V-clamp

L

LambdaLarsen® Body Strap
Clamp (LL)
Dinex no. Ø mm

Dinex no. Ø mm Ø 95407 317 Ø

42816 317

V-Clamp Ø mm Ø Gasket Ø mm Ø
317 317
Dinex no. Dinex no.

78825 98931

Ring Ø mm Ø
317
Dinex no.

98932

going the extra mile 71
