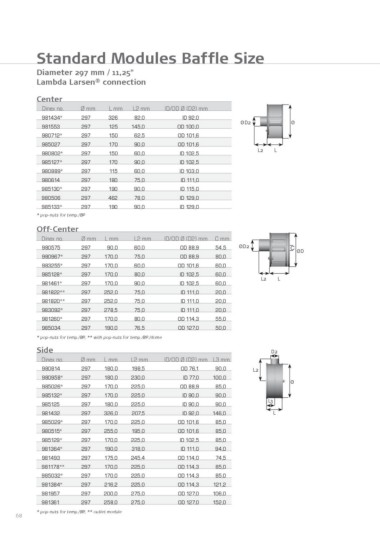

Standard Modules Baffle Size

Diameter 297 mm / 11,25"
Lambda Larsen® connection

Center

Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm

981434* 297 326 82,0 ID 92,0 ØD2 Ø
L2
981553 297 125 145,0 OD 100,0

980712* 297 150 62,5 OD 101,6

985027 297 170 90,0 OD 101,6 L

980802* 297 150 60,0 ID 102,5

985127* 297 170 90,0 ID 102,5

980889* 297 115 60,0 ID 103,0

980614 297 180 75,0 ID 111,0

985130* 297 190 90,0 ID 115,0

980506 297 462 78,0 ID 129,0

985133* 297 190 90,0 ID 129,0

* pop-nuts for temp./BP

Off-Center

Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm C mm

980575 297 90,0 60,0 OD 88,9 54,5 ØD2 C ØD
980967* 297 170,0 75,0 OD 88,9 80,0

983255* 297 170,0 60,0 OD 101,6 60,0

985128* 297 170,0 80,0 ID 102,5 60,0 L2 L
981461* 297 170,0 90,0 ID 102,5 60,0

981822** 297 252,0 75,0 ID 111,0 20,0

981820** 297 252,0 75,0 ID 111,0 20,0

983092* 297 278,5 75,0 ID 111,0 20,0

981260* 297 170,0 80,0 OD 114,3 55,0

985034 297 190,0 76,5 OD 127,0 50,0

* pop-nuts for temp./BP, ** with pop-nuts for temp./BP./dome

Side D2

Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm L3 mm L2
Ø
980814 297 180,0 198,5 OD 76,1 90,0
980958* 297 180,0 230,0 ID 77,0 100,0 L3
985026* 297 170,0 225,0 OD 88,9 85,0 L
985132* 297 170,0 225,0 ID 90,0 90,0
985125 297 180,0 225,0 ID 90,0 90,0
981432 297 326,0 207,5 ID 92,0 146,0
985029* 297 170,0 225,0 OD 101,6 85,0
980515* 297 255,0 195,0 OD 101,6 85,0
985129* 297 170,0 225,0 ID 102,5 85,0
981364* 297 190,0 318,0 ID 111,0 94,0
981493 297 175,0 245,4 OD 114,0 74,5
981178** 297 170,0 225,0 OD 114,3 85,0
985032* 297 170,0 225,0 OD 114,3 85,0
981384* 297 216,2 225,0 OD 114,3 121,2
981957 297 200,0 275,0 OD 127,0 106,0
981361 297 258,0 275,0 OD 127,0 152,0

68 * pop-nuts for temp./BP, ** outlet module
