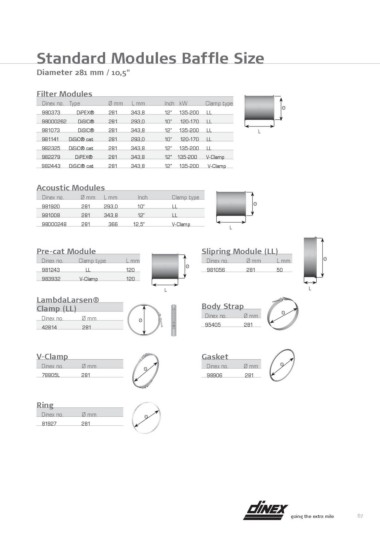

Standard Modules Baffle Size

Diameter 281 mm / 10,5"

Filter Modules

Dinex no. Type Ø mm L mm Inch kW Clamp type Ø

980373 DiPEX® 281 343,8 12” 135-200 LL

98000262 DiSIC® 281 293,0 10” 120-170 LL

981073 DiSIC® 281 343,8 12” 135-200 LL L

981141 DiSiC® cat 281 293,0 10” 120-170 LL

982325 D iSiC® cat 281 343,8 12” 135-200 LL

982279 DiPEX® 281 343,8 12" 135-200 V-Clamp

982443 DiSiC® cat 281 343,8 12" 135-200 V-Clamp

Acoustic Modules

Dinex no. Ø mm L mm Inch Clamp type

981920 281 293,0 10” LL Ø
L
981008 281 343,8 12” LL

98000248 281 366 12,5" V-Clamp

Pre-cat Module Slipring Module (LL)

Dinex no. Clamp type L mm Dinex no. Ø mm L mm Ø
120 50
981243 LL 120 Ø 981056 281

983932 V-Clamp

LL

LambdaLarsen® Body Strap Ø
Clamp (LL)
Dinex no. Ø mm
Dinex no. Ø mm Ø
95405 281
42814 281

V-Clamp Ø mm Ø Gasket Ø mm Ø
281 281
Dinex no. Dinex no.

78805L 98906

Ring Ø mm Ø
281
Dinex no.

81927

going the extra mile 67
