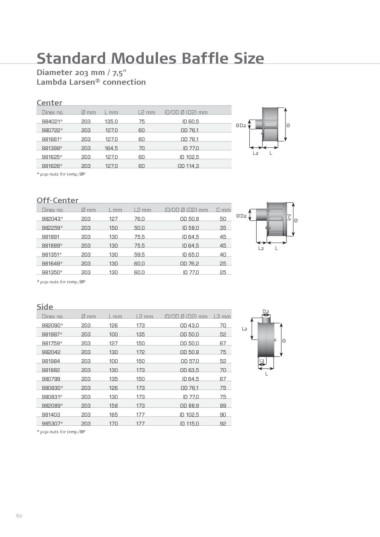

Standard Modules Baffle Size

Diameter 203 mm / 7,5"
Lambda Larsen® connection

Center

Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm

984021* 203 135,0 75 ID 60,5 ØD2 Ø
980722* 203 127,0 60 OD 76,1

981661* 203 127,0 60 OD 76,1

981398* 203 164,5 70 ID 77,0 L2 L

981625* 203 127,0 60 ID 102,5

981626* 203 127,0 60 OD 114,3

* pop-nuts for temp./BP

Off-Center

Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm C mm CØ
982043* 203 127 76,0 OD 50,8 50 ØD2
982259* 203 150 50,0 ID 58,0 35

981891 203 130 75,5 ID 64,5 45

981889* 203 130 75,5 ID 64,5 45 L2 L
981351* 203 130 59,5 ID 65,0 40

981649* 203 130 60,0 OD 76,2 25

981350* 203 130 60,0 ID 77,0 25

* pop-nuts for temp./BP

Side D2

Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm L3 mm

982090* 203 126 173 OD 43,0 70 L2
981997* 203 100 135 OD 50,0 52
981759* 203 127 150 OD 50,0 67 Ø

982042 203 130 172 OD 50,8 75

981984 203 100 150 OD 57,0 52 L3

981882 203 130 173 OD 63,5 70 L
980799 203 135 150 ID 64,5 67

980830* 203 126 173 OD 76,1 75

980831* 203 130 173 ID 77,0 75

982089* 203 158 173 OD 88,9 89

981403 203 165 177 ID 102,5 90

985307* 203 170 177 ID 115,0 92

* pop-nuts for temp./BP

62
