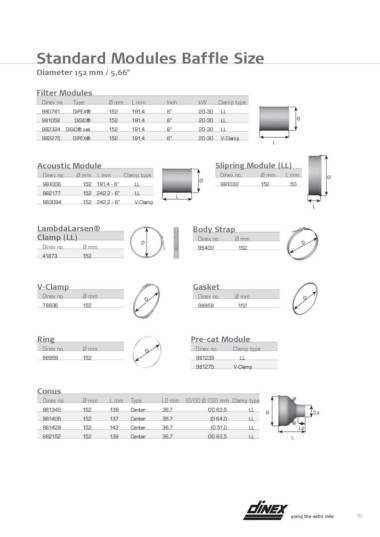

Standard Modules Baffle Size

Diameter 152 mm / 5,66"

Filter Modules

Dinex no. Type Ø mm L mm Inch kW Clamp type
LL
980781 DiPEX® 152 191,4 6” 20-30 LL
LL
981059 DiSiC® 152 191,4 6” 20-30 V-Clamp Ø

982324 DiSiC® cat 152 191,4 6” 20-30

982275 DiPEX® 152 191,4 6" 20-30 L

Acoustic Module Slipring Module (LL)

Dinex no. Ø mm L mm Clamp type Dinex no. Ø mm L mm Ø
Ø 981032 152 50
981006 152 191,4 - 6” LL

982177 152 242,2 - 6" LL L
L
983094 152 242,2 - 6" V-Clamp

LambdaLarsen® Body Strap
Clamp (LL)
Ø Dinex no. Ø mm Ø

Dinex no. Ø mm 95400 152

41873 152

V-Clamp Gasket

Dinex no. Ø mm Ø Dinex no. Ø mm Ø
152
78836 98958 152

Ring Pre-cat Module

Dinex no. Ø mm Ø Dinex no. Clamp type
152
98959 981239 LL

981275 V-Clamp

Conus

Dinex no. Ø mm L mm Type L2 mm ID/OD Ø (D2) mm Clamp type

981345 152 139 Center 36,7 OD 63,5 LL Ø D2

981406 152 137 Center 36,7 ID 64,0 LL L2
L
981429 152 143 Center 36,7 ID 51,0 LL

982152 152 139 Center 36,7 OD 63,5 LL
