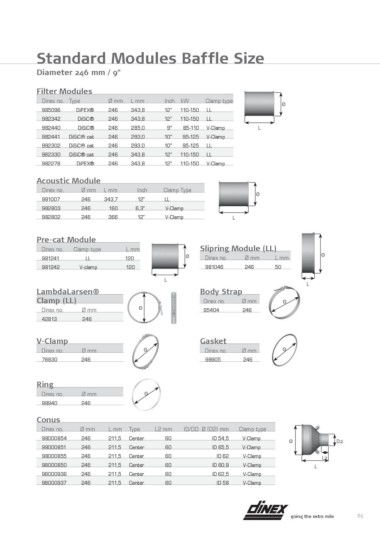

Standard Modules Baffle Size

Diameter 246 mm / 9"

Filter Modules

Dinex no. Type Ø mm L mm Inch kW Clamp type Ø
LL
985096 DiPEX® 246 343,8 12” 110-150 LL
V-Clamp
982342 DiSiC® 246 343,8 12” 110-150 V-Clamp
LL
982440 DiSiC® 246 285,0 9" 85-110 LL L
V-Clamp Ø
982441 DiSiC® cat 246 293,0 10" 95-125

982302 DiSiC® cat 246 293,0 10" 95-125

982330 DiSiC® cat 246 343,8 12” 110-150

982278 DiPEX® 246 343,8 12" 110-150

Acoustic Module

Dinex no. Ø mm L mm Inch Clamp Type

981007 246 343,7 12" LL

982803 246 160 6,3" V-Clamp

982802 246 366 12" V-Clamp L

Pre-cat Module Slipring Module (LL)

Dinex no. Clamp type L mm Ø
120 L
981241 LL 120 Ø Dinex no. Ø mm L mm

981242 V-clamp 981046 246 50

L

LambdaLarsen® Body Strap
Clamp (LL)
Dinex no. Ø mm Ø

Dinex no. Ø mm Ø 95404 246

42813 246

V-Clamp Ø mm Ø Gasket Ø mm Ø
246 246
Dinex no. Dinex no.

78830 98905

Ring Ø mm Ø
246
Dinex no.

98940

Conus

Dinex no. Ø mm L mm Type L2 mm ID/OD Ø (D2) mm Clamp type

98000854 246 211,5 Center 60 ID 54,5 V-Clamp Ø D2
98000851 246 211,5 Center 60 ID 65,5 V-Clamp

98000855 246 211,5 Center 60 ID 62 V-Clamp L2
98000850 246 211,5 Center 60 ID 60,9 V-Clamp L
98000936 246 211,5 Center 60 ID 62,5 V-Clamp

98000937 246 211,5 Center 60 ID 58 V-Clamp
