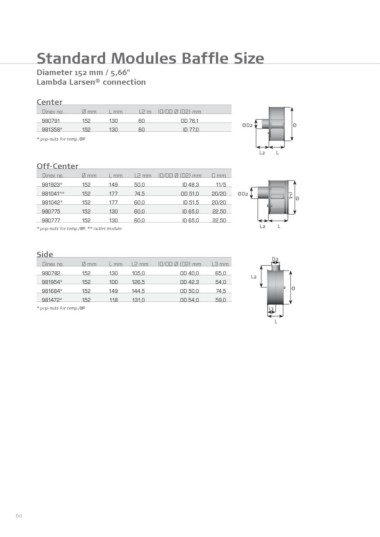

Standard Modules Baffle Size

Diameter 152 mm / 5,66"
Lambda Larsen® connection

Center

Dinex no. Ø mm L mm L2 m ID/OD Ø (D2) mm

980791 152 130 60 OD 76,1 ØD2 Ø
981358* 152 130 60 ID 77,0 L

* pop-nuts for temp./BP CØ
L
Off-Center L2
L2
Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm C mm

981923* 152 149 50,0 ID 48,3 11/5

981041** 152 177 74,5 OD 51,0 20/20 ØD2

981042* 152 177 60,0 ID 51,5 20/20

980775 152 130 60,0 ID 65,0 22,50

980777 152 130 60,0 ID 65,0 22,50

* pop-nuts for temp./BP, ** outlet module

Side D2
L2
Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm L3 mm
Ø
980782 152 130 105,0 OD 40,0 65,0
L3
981954* 152 100 126,5 OD 42,3 54,0 L

981684* 152 149 144,5 OD 50,0 74,5

981472* 152 118 131,0 OD 54,0 59,0

* pop-nuts for temp./BP
