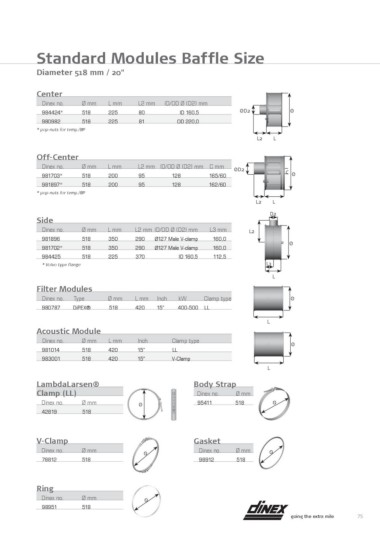

Standard Modules Baffle Size

Diameter 518 mm / 20"

Center

Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm

984424* 518 225 80 ID 160,5 ØD2 Ø
L2
980982 518 225 81 OD 220,0

* pop-nuts for temp./BP

L

Off-Center

Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm C mm ØD2 CØ
Ø
981703* 518 200 95 128 165/60 Ø

981897* 518 200 95 128 162/60

* pop-nuts for temp./BP

L2 L

Side D2
L2
Dinex no. Ø mm L mm L2 mm ID/OD Ø (D2) mm L3 mm
L3
981896 518 350 290 Ø127 Male V-clamp 160,0

981702* 518 350 290 Ø127 Male V-clamp 160,0

984425 518 225 370 ID 160,5 112,5

* Volvo type flange

L

Filter Modules

Dinex no. Type Ø mm L mm Inch kW Clamp type

980787 DiPEX® 518 420 15” 400-500 LL

Acoustic Module L
Ø
Dinex no. Ø mm L mm Inch Clamp type
L
981014 518 420 15” LL

983001 518 420 15" V-Clamp

LambdaLarsen® Body Strap
Clamp (LL)
Dinex no. Ø mm

Dinex no. Ø mm Ø 95411 518 Ø

42819 518

V-Clamp Ø mm Ø Gasket Ø mm Ø
518 518
Dinex no. Dinex no.

78812 98912

Ring Ø mm Ø
518
Dinex no.

98951
