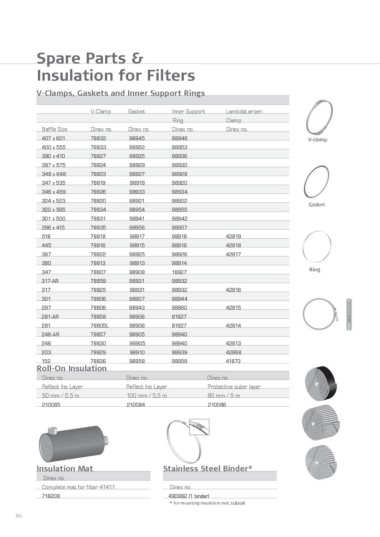

Spare Parts &
Insulation for Filters

V-Clamps, Gaskets and Inner Support Rings

V-Clamp Gasket Inner S upport LambdaLarsen

Ring Clamp

Baffle Size Dinex no. Dinex no. Dinex no. Dinex no.

407 x 601 78832 98945 98946 V-clamp
400 x 555 78833 98952 98953

390 x 410 78827 98935 98936

387 x 575 78824 98929 98930

348 x 648 78823 98927 98928

347 x 535 78819 98919 98920

346 x 459 78826 98933 98934

324 x 523 78820 98921 98922 Gasket
320 x 595 78834 98954 98955

301 x 500 78831 98941 98942

296 x 415 78835 98956 98957

518 78818 98917 98918 42819

445 78816 98915 98916 42818

397 78822 98925 98926 42817

380 78813 98913 98914 Ring
347 78807 98908 18927

317-AR 78859 98931 98932

317 78825 98931 98932 42816

301 78806 98907 98944

297 78806 98943 98860 42815

281-AR 78858 98906 81927

281 78805L 98906 81927 42814

246-AR 78857 98905 98940

246 78830 98905 98940 42813

203 78829 98910 98939 42868

152 78836 98958 98959 41873

Roll-On Insulation

Dinex no. Dinex no. Dinex no.

Reflect Ins Layer Reflect Ins Layer P rotective outer layer

50 mm / 5,5 m 100 mm / 5,5 m 8 0 mm / 5 m

210085 210084 210086

Insulation Mat Stainless Steel Binder*

Dinex no.
Complete mat for filter 41411 Dinex no.
718208
490992 (1 binder)
80
* for mounting insulation mat 718208
