D2

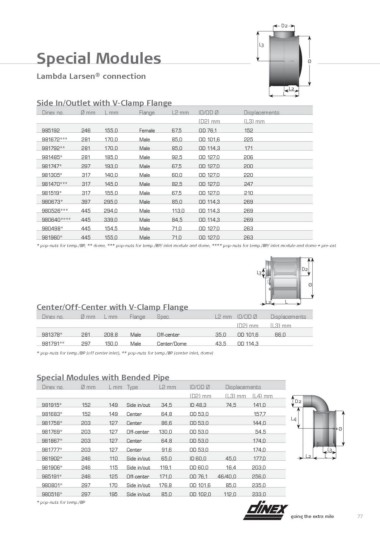

Special Modules L3
Ø

Lambda Larsen® connection

L2
L

Side In/Outlet with V-Clamp Flange

Dinex no. Ø mm L mm Flange L2 mm ID/OD Ø Displacements

(D2) mm (L3) mm

985192 246 155,0 F emale 67,5 OD 76,1 152

981672*** 281 170,0 M ale 85 ,0 OD 101,6 225

981792** 281 170,0 M ale 85 ,0 OD 114,3 171

981485* 281 185,0 M ale 92 ,5 OD 127,0 206

981747* 297 193,0 M ale 67 ,5 OD 127,0 200

981305* 317 140,0 M ale 60 ,0 OD 127,0 220

981470*** 317 145,0 M ale 82 ,5 OD 127,0 247

981519* 317 155,0 M ale 67 ,5 OD 127,0 210

980673* 397 295,0 M ale 85,0 OD 114,3 269

980526*** 445 294,0 M ale 11 3,0 OD 114,3 269

980640**** 445 339,0 M ale 84 ,5 OD 114,3 269

980498* 445 154,5 M ale 71,0 OD 127,0 263

981960* 445 155,0 M ale 71,0 OD 127,0 263

* pop-nuts for temp./BP, ** dome, *** pop-nuts fo r temp./BP/ inlet module and dome, **** pop-nuts for temp./BP/ inlet module and dome + pre-cat

L3 D2
Ø

Center/Off-Center with V-Clamp Flange L2 L

Dinex no. Ø mm L mm Flange Spec. L2 mm ID/OD Ø Displacements

(D2) mm (L3) mm

981378* 281 208,8 Male Of f-cen ter 35,0 O D 101,6 6 6,0

981791** 297 150,0 Male Cen ter/D ome 43,5 OD 114,3

* pop-nuts for temp./BP (off center inlet), ** pop-nuts for temp./BP (center inlet, dome)

Special Modules with Bended Pipe

Dinex no. Ø mm L mm Type L2 mm I D/OD Ø Displacements

34,5 (D2) mm (L3) mm (L4) mm
981915* 152 149 Side in/o ut ID 48,3 74,5 141,0 D2

981683* 152 149 Cen ter 64,8 O D 53,0 157,7 L4
981758* 203 127 Cen ter 86,6 OD 53,0 144,0

981769* 203 127 Off- cent er 130,0 O D 53,0 54,5 Ø

981867* 203 127 Cen ter 64,8 OD 53,0 174,0 L3
L
981777* 203 127 Cen ter 91,6 OD 53,0 174,0
981902* 246 110 Side in/o ut 65,0 177,0
ID 60,0 45,0 L2

981906* 246 115 Side in/ou t 119,1 OD 60,0 16,4 203,0

985191* 246 125 Off- cent er 171,0 O D 76,1 46/40,0 256,0

980801* 297 170 Side in/o ut 176,8 O D 101,6 85,0 235,0

980516* 297 195 Side in/o ut 85,0 OD 102,0 112,0 233,0

* pop-nuts for temp./BP

going the extra mile 77
