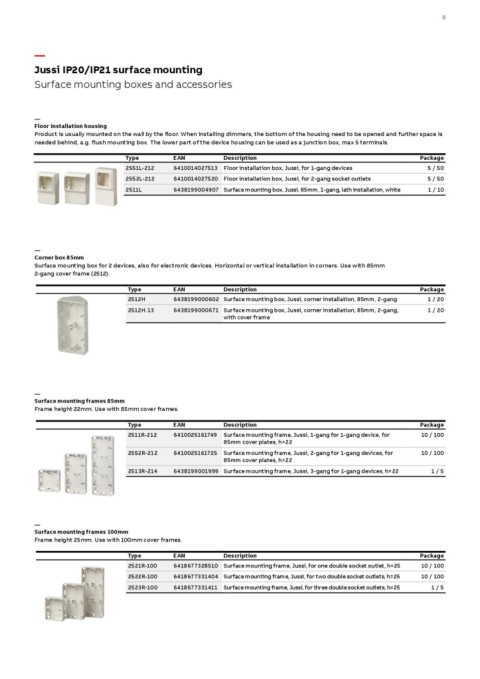

Jussi IP20/IP21 surface mounting
Surface mounting boxes and accessories

—
Floor installation housing

Product is usually mounted on the wall by the floor. When installing dimmers, the bottom of the housing need to be opened and further space is

needed behind, a.g. flush mounting box. The lower part of the device housing can be used as a junction box, max 5 terminals.

Type EAN Description Package
2551L-212 5 / 50
2552L-212 6410014027513 Floor installation box, Jussi, for 1-gang devices 5 / 50
2511L 1 / 10
6410014027520 Floor installation box, Jussi, for 2-gang socket outlets

6438199004907 Surface mounting box, Jussi, 85mm, 1-gang, lath installation, white

—
Corner box 85mm

Surface mounting box for 2 devices, also for electronic devices. Horizontal or vertical installation in corners. Use with 85mm

2-gang cover frame (2512).

Type EAN Description Package
2512H 1 / 20
2512H.13 6438199000602 Surface mounting box, Jussi, corner installation, 85mm, 2-gang 1 / 20

6438199000671 Surface mounting box, Jussi, corner installation, 85mm, 2-gang,
with cover frame

—
Surface mounting frames 85mm

Frame height 22mm. Use with 85mm cover frames.

Type EAN Description Package
2511R­-212 6410025161749 10 / 100
Surface mounting frame, Jussi, 1-gang for 1-gang device, for
2552R-2­ 12 85mm cover plates, h=22 10 / 100

2513R-­ 214 6410025161725 Surface mounting frame, Jussi, 2-gang for 1-gang devices, for 1/5
85mm cover plates, h=22

6438199001999 Surface mounting frame, Jussi, 3-gang for 1-gang devices, h=22

—
Surface mounting frames 100mm

Frame height 25mm. Use with 100mm cover frames.

Type EAN Description Package
2521R-100 10 / 100
2522R-100 6418677328510 Surface mounting frame, Jussi, for one double socket outlet, h=25 10 / 100
2523R-100
6418677331404 Surface mounting frame, Jussi, for two double socket outlets, h=25 1/5

6418677331411 Surface mounting frame, Jussi, for three double socket outlets, h=25
