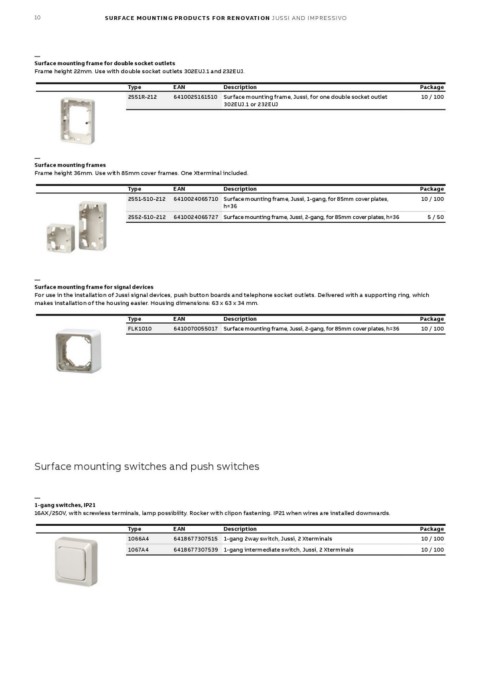

10 SURFACE MOUNTING PRODUCTS FOR RENOVATION JUSSI AND IMPRESSIVO

—
Surface mounting frame for double socket outlets

Frame height 22mm. Use with double socket outlets 302EUJ.1 and 232EUJ.

Type EAN Description Package
2551R-212 6410025161510 10 / 100
Surface mounting frame, Jussi, for one double socket outlet
302EUJ.1 or 232EUJ

—
Surface mounting frames

Frame height 36mm. Use with 85mm cover frames. One X­terminal included.

Type EAN Description Package
2551-510-212 6410024065710 10 / 100
Surface mounting frame, Jussi, 1-gang, for 85mm cover plates,
2552-510-212 h=36 5 / 50

6410024065727 Surface mounting frame, Jussi, 2-gang, for 85mm cover plates, h=36

—
Surface mounting frame for signal devices

For use in the installation of Jussi signal devices, push button boards and telephone socket outlets. Delivered with a supporting ring, which

makes installation of the housing easier. Housing dimensions: 63 x 63 x 34 mm.

Type EAN Description Package
FLK1010 10 / 100
6410070055017 Surface mounting frame, Jussi, 2-gang, for 85mm cover plates, h=36

Surface mounting switches and push switches

—
1-gang switches, IP21

16AX/250V, with screwless terminals, lamp possibility. Rocker with clip­on fastening. IP21 when wires are installed downwards.

Type EAN Description Package
1066A4 10 / 100
1067A4 6418677307515 1-gang 2w­ ay switch, Jussi, 2 X­terminals 10 / 100

6418677307539 1-gang intermediate switch, Jussi, 2 Xt­ erminals
