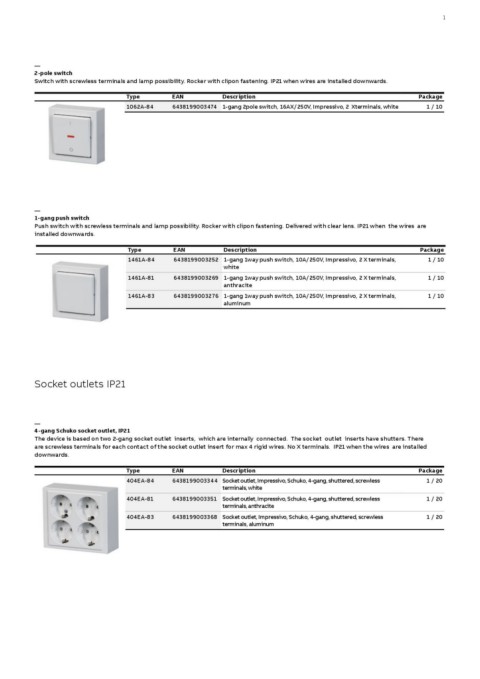

1

—
2-­pole switch

Switch with screwless terminals and lamp possibility. Rocker with clip­on fastening. IP21 when wires are installed downwards.

                     Type      EAN  Description                                                                                Package
                     1062A-84                                                                                                      1 / 10
                               6438199003474 1-gang 2p­ ole switch, 16AX/250V, Impressivo, 2 X­terminals, white

—
­1-gang push switch

Push switch with screwless terminals and lamp possibility. Rocker with clipo­ n fastening. Delivered with clear lens. IP21 when the wires are

installed downwards.

                     Type      EAN  Description                                                                                Package
                     1461A-84                                                                                                      1 / 10
                               6438199003252 1-gang 1w­ ay push switch, 10A/250V, Impressivo, 2 X­terminals,
                     1461A-81                            white                                                                     1 / 10

                     1461A-83  6438199003269 1-gang 1­way push switch, 10A/250V, Impressivo, 2 X­terminals,                        1 / 10
                                                         anthracite

                               6438199003276 1-gang 1­way push switch, 10A/250V, Impressivo, 2 X­terminals,
                                                         aluminum

Socket outlets IP21

—
4-gang Schuko socket outlet, IP21

The device is based on two 2-gang socket outlet inserts, which are internally connected. The socket outlet inserts have shutters. There

are screwless terminals for each contact of the socket outlet insert for max 4 rigid wires. No X­terminals. IP21 when the wires are installed

downwards.

                     Type      EAN  Description                                                                                Package
                     404EA-84                                                                                                      1 / 20
                               6438199003344 Socket outlet, Impressivo, Schuko, 4-gang, shuttered, screwless
                     404EA-81                            terminals, white                                                          1 / 20

                     404EA-83  6438199003351 Socket outlet, Impressivo, Schuko, 4-gang, shuttered, screwless                       1 / 20
                                                         terminals, anthracite

                               6438199003368 Socket outlet, Impressivo, Schuko, 4-gang, shuttered, screwless
                                                         terminals, aluminum
