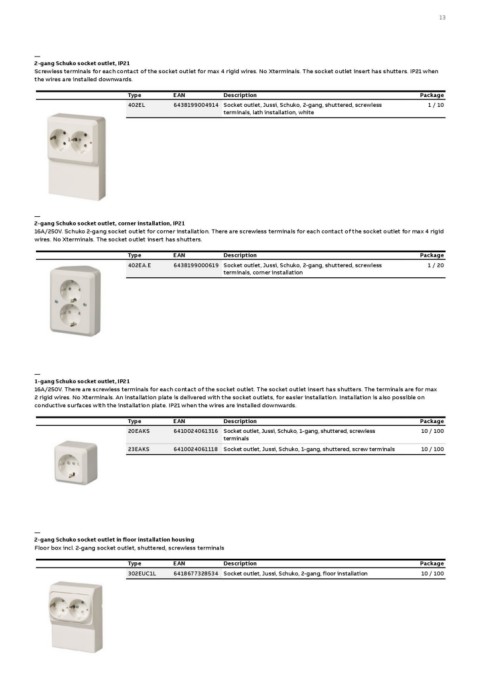

13

—
2-gang Schuko socket outlet, IP21

Screwless terminals for each contact of the socket outlet for max 4 rigid wires. No Xt­ erminals. The socket outlet insert has shutters. IP21 when

the wires are installed downwards.

Type      EAN  Description                                                                Package
402EL                                                                                         1 / 10
          6438199004914 Socket outlet, Jussi, Schuko, 2-gang, shuttered, screwless
                                    terminals, lath installation, white

—
2-gang Schuko socket outlet, corner installation, IP21

16A/250V. Schuko 2-gang socket outlet for corner installation. There are screwless terminals for each contact of the socket outlet for max 4 rigid

wires. No Xt­ erminals. The socket outlet insert has shutters.

Type      EAN  Description                                                                Package
402EA.E                                                                                       1 / 20
          6438199000619 Socket outlet, Jussi, Schuko, 2-gang, shuttered, screwless
                                    terminals, corner installation

—
1-gang Schuko socket outlet, IP21

16A/250V. There are screwless terminals for each contact of the socket outlet. The socket outlet insert has shutters. The terminals are for max

2 rigid wires. No X­terminals. An installation plate is delivered with the socket outlets, for easier installation. Installation is also possible on

conductive surfaces with the installation plate. IP21 when the wires are installed downwards.

Type      EAN  Description                                                                Package
20EAKS                                                                                    10 / 100
          6410024061316 Socket outlet, Jussi, Schuko, 1-gang, shuttered, screwless
23EAKS                              terminals                                             10 / 100

          6410024061118 Socket outlet, Jussi, Schuko, 1-gang, shuttered, screw terminals

—
2-gang Schuko socket outlet in floor installation housing

Floor box incl. 2-gang socket outlet, shuttered, screwless terminals

Type      EAN  Description                                                                Package
302EUC1L                                                                                  10 / 100
          6418677328534 Socket outlet, Jussi, Schuko, 2-gang, floor installation
