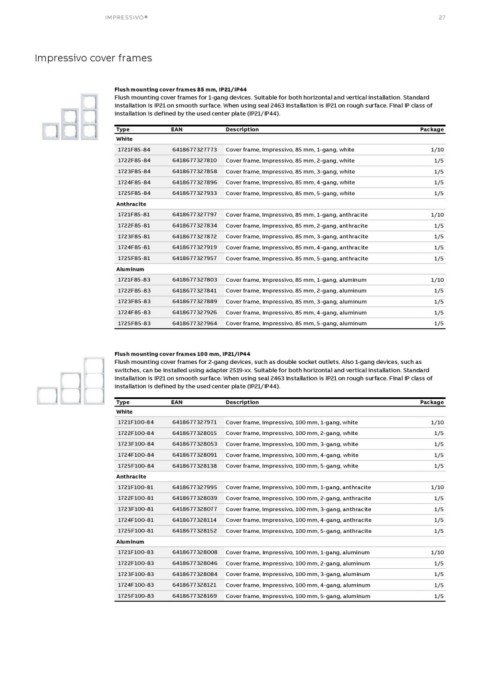

Page 27 - ABB_Wiring_Accessories_Impressivo_Jussi_catalog
P. 27
IMPRESSIVO® 27
Impressivo cover frames
Flush mounting cover frames 85 mm, IP21/IP44
Flush mounting cover frames for 1-gang devices. Suitable for both horizontal and vertical installation. Standard
installation is IP21 on smooth surface. When using seal 2463 installation is IP21 on rough surface. Final IP class of
installation is defined by the used center plate (IP21/IP44).
Type EAN Description Package
White
1721F85-84 6418677327773 Cover frame, Impressivo, 85 mm, 1-gang, white 1/10
1722F85-84 6418677327810 Cover frame, Impressivo, 85 mm, 2-gang, white 1/5
1723F85-84 6418677327858 Cover frame, Impressivo, 85 mm, 3-gang, white 1/5
1724F85-84 6418677327896 Cover frame, Impressivo, 85 mm, 4-gang, white 1/5
1725F85-84 6418677327933 Cover frame, Impressivo, 85 mm, 5-gang, white 1/5
Anthracite
1721F85-81 6418677327797 Cover frame, Impressivo, 85 mm, 1-gang, anthracite 1/10
1722F85-81 6418677327834 Cover frame, Impressivo, 85 mm, 2-gang, anthracite 1/5
1723F85-81 6418677327872 Cover frame, Impressivo, 85 mm, 3-gang, anthracite 1/5
1724F85-81 6418677327919 Cover frame, Impressivo, 85 mm, 4-gang, anthracite 1/5
1725F85-81 6418677327957 Cover frame, Impressivo, 85 mm, 5-gang, anthracite 1/5
Aluminum
1721F85-83 6418677327803 Cover frame, Impressivo, 85 mm, 1-gang, aluminum 1/10
1722F85-83 6418677327841 Cover frame, Impressivo, 85 mm, 2-gang, aluminum 1/5
1723F85-83 6418677327889 Cover frame, Impressivo, 85 mm, 3-gang, aluminum 1/5
1724F85-83 6418677327926 Cover frame, Impressivo, 85 mm, 4-gang, aluminum 1/5
1725F85-83 6418677327964 Cover frame, Impressivo, 85 mm, 5-gang, aluminum 1/5
Flush mounting cover frames 100 mm, IP21/IP44
Flush mounting cover frames for 2-gang devices, such as double socket outlets. Also 1-gang devices, such as
switches, can be installed using adapter 2519-xx. Suitable for both horizontal and vertical installation. Standard
installation is IP21 on smooth surface. When using seal 2463 installation is IP21 on rough surface. Final IP class of
installation is defined by the used center plate (IP21/IP44).
Type EAN Description Package
White
1721F100-84 6418677327971 Cover frame, Impressivo, 100 mm, 1-gang, white 1/10
1722F100-84 6418677328015 Cover frame, Impressivo, 100 mm, 2-gang, white 1/5
1723F100-84 6418677328053 Cover frame, Impressivo, 100 mm, 3-gang, white 1/5
1724F100-84 6418677328091 Cover frame, Impressivo, 100 mm, 4-gang, white 1/5
1725F100-84 6418677328138 Cover frame, Impressivo, 100 mm, 5-gang, white 1/5
Anthracite
1721F100-81 6418677327995 Cover frame, Impressivo, 100 mm, 1-gang, anthracite 1/10
1722F100-81 6418677328039 Cover frame, Impressivo, 100 mm, 2-gang, anthracite 1/5
1723F100-81 6418677328077 Cover frame, Impressivo, 100 mm, 3-gang, anthracite 1/5
1724F100-81 6418677328114 Cover frame, Impressivo, 100 mm, 4-gang, anthracite 1/5
1725F100-81 6418677328152 Cover frame, Impressivo, 100 mm, 5-gang, anthracite 1/5
Aluminum
1721F100-83 6418677328008 Cover frame, Impressivo, 100 mm, 1-gang, aluminum 1/10
1722F100-83 6418677328046 Cover frame, Impressivo, 100 mm, 2-gang, aluminum 1/5
1723F100-83 6418677328084 Cover frame, Impressivo, 100 mm, 3-gang, aluminum 1/5
1724F100-83 6418677328121 Cover frame, Impressivo, 100 mm, 4-gang, aluminum 1/5
1725F100-83 6418677328169 Cover frame, Impressivo, 100 mm, 5-gang, aluminum 1/5
