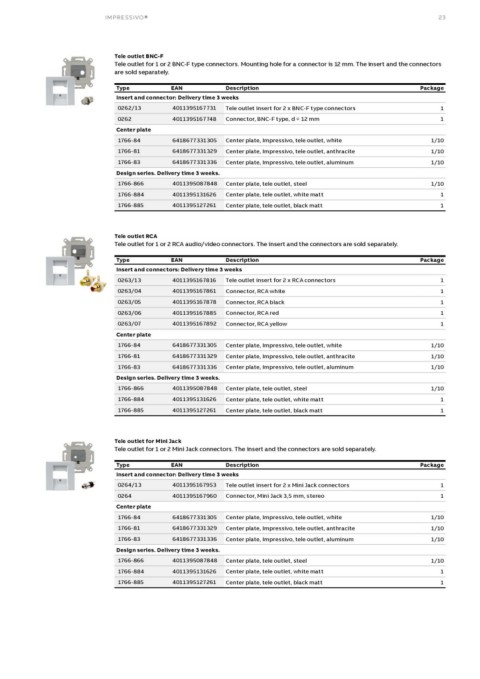

IMPRESSIVO® 23
Tele outlet BNC-F
Tele outlet for 1 or 2 BNC-F type connectors. Mounting hole for a connector is 12 mm. The insert and the connectors
are sold separately.
Type EAN Description Package
Insert and connector: Delivery time 3 weeks 1
1
0262/13 4011395167731 Tele outlet insert for 2 x BNC-F type connectors
1/10
0262 4011395167748 Connector, BNC-F type, d = 12 mm 1/10
1/10
Center plate
1/10
1766-84 6418677331305 Center plate, Impressivo, tele outlet, white 1
1
1766-81 6418677331329 Center plate, Impressivo, tele outlet, anthracite
1766-83 6418677331336 Center plate, Impressivo, tele outlet, aluminum
Design series. Delivery time 3 weeks.
1766-866 4011395087848 Center plate, tele outlet, steel
1766-884 4011395131626 Center plate, tele outlet, white matt
1766-885 4011395127261 Center plate, tele outlet, black matt
Tele outlet RCA
Tele outlet for 1 or 2 RCA audio/video connectors. The insert and the connectors are sold separately.
Type EAN Description Package
Insert and connectors: Delivery time 3 weeks 1
1
0263/13 4011395167816 Tele outlet insert for 2 x RCA connectors 1
1
0263/04 4011395167861 Connector, RCA white 1
0263/05 4011395167878 Connector, RCA black 1/10
1/10
0263/06 4011395167885 Connector, RCA red 1/10
0263/07 4011395167892 Connector, RCA yellow 1/10
1
Center plate 1
1766-84 6418677331305 Center plate, Impressivo, tele outlet, white
1766-81 6418677331329 Center plate, Impressivo, tele outlet, anthracite
1766-83 6418677331336 Center plate, Impressivo, tele outlet, aluminum
Design series. Delivery time 3 weeks.
1766-866 4011395087848 Center plate, tele outlet, steel
1766-884 4011395131626 Center plate, tele outlet, white matt
1766-885 4011395127261 Center plate, tele outlet, black matt
Tele outlet for Mini Jack
Tele outlet for 1 or 2 Mini Jack connectors. The insert and the connectors are sold separately.
Type EAN Description Package
Insert and connector: Delivery time 3 weeks 1
1
0264/13 4011395167953 Tele outlet insert for 2 x Mini Jack connectors
1/10
0264 4011395167960 Connector, Mini Jack 3,5 mm, stereo 1/10
1/10
Center plate
1/10
1766-84 6418677331305 Center plate, Impressivo, tele outlet, white 1
1
1766-81 6418677331329 Center plate, Impressivo, tele outlet, anthracite
1766-83 6418677331336 Center plate, Impressivo, tele outlet, aluminum
Design series. Delivery time 3 weeks.
1766-866 4011395087848 Center plate, tele outlet, steel
1766-884 4011395131626 Center plate, tele outlet, white matt
1766-885 4011395127261 Center plate, tele outlet, black matt
