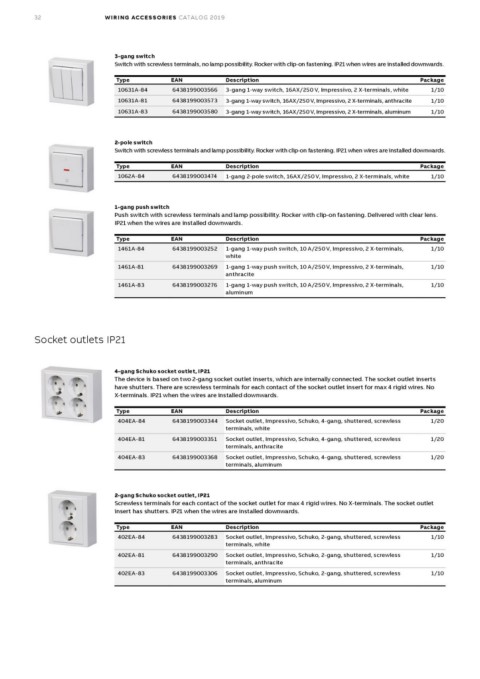

32 WIRING ACCESSORIES CATALOG 2019

3-gang switch
Switch with screwless terminals, no lamp possibility. Rocker with clip-on fastening. IP21 when wires are installed downwards.

Type EAN Description Package
10631A-84 6438199003566 3-gang 1-way switch, 16AX/250 V, Impressivo, 2 X-terminals, white 1/10
10631A-81 6438199003573 3-gang 1-way switch, 16AX/250 V, Impressivo, 2 X-terminals, anthracite 1/10
10631A-83 6438199003580 3-gang 1-way switch, 16AX/250 V, Impressivo, 2 X-terminals, aluminum 1/10

2-pole switch
Switch with screwless terminals and lamp possibility. Rocker with clip-on fastening. IP21 when wires are installed downwards.

Type EAN Description Package
1062A-84 6438199003474 1-gang 2-pole switch, 16AX/250 V, Impressivo, 2 X-terminals, white 1/10

1-gang push switch
Push switch with screwless terminals and lamp possibility. Rocker with clip-on fastening. Delivered with clear lens.
IP21 when the wires are installed downwards.

Type EAN Description Package
1461A-84 6438199003252 1/10
1-gang 1-way push switch, 10 A/250 V, Impressivo, 2 X-terminals,
1461A-81 6438199003269 white 1/10

1461A-83 6438199003276 1-gang 1-way push switch, 10 A/250 V, Impressivo, 2 X-terminals, 1/10
anthracite

1-gang 1-way push switch, 10 A/250 V, Impressivo, 2 X-terminals,
aluminum

Socket outlets IP21

4-gang Schuko socket outlet, IP21
The device is based on two 2-gang socket outlet inserts, which are internally connected. The socket outlet inserts
have shutters. There are screwless terminals for each contact of the socket outlet insert for max 4 rigid wires. No
X-terminals. IP21 when the wires are installed downwards.

Type EAN Description Package
404EA-84 6438199003344 1/20
Socket outlet, Impressivo, Schuko, 4-gang, shuttered, screwless
404EA-81 6438199003351 terminals, white 1/20

404EA-83 6438199003368 Socket outlet, Impressivo, Schuko, 4-gang, shuttered, screwless 1/20
terminals, anthracite

Socket outlet, Impressivo, Schuko, 4-gang, shuttered, screwless
terminals, aluminum

2-gang Schuko socket outlet, IP21
Screwless terminals for each contact of the socket outlet for max 4 rigid wires. No X-terminals. The socket outlet
insert has shutters. IP21 when the wires are installed downwards.

Type EAN Description Package
402EA-84 6438199003283 1/10
Socket outlet, Impressivo, Schuko, 2-gang, shuttered, screwless
402EA-81 6438199003290 terminals, white 1/10

402EA-83 6438199003306 Socket outlet, Impressivo, Schuko, 2-gang, shuttered, screwless 1/10
terminals, anthracite

Socket outlet, Impressivo, Schuko, 2-gang, shuttered, screwless
terminals, aluminum
