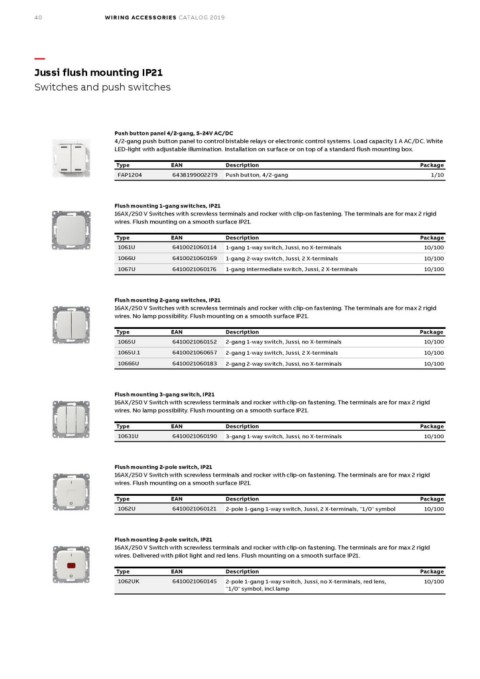

40 WIRING ACCESSORIES CATALOG 2019
—
Jussi flush mounting IP21
Switches and push switches
Push button panel 4/2-gang, 5-24V AC/DC
4/2-gang push button panel to control bistable relays or electronic control systems. Load capacity 1 A AC/DC. White
LED-light with adjustable illumination. Installation on surface or on top of a standard flush mounting box.
Type EAN Description Package
FAP1204 1/10
6438199002279 Push button, 4/2-gang
Flush mounting 1-gang switches, IP21
16AX/250 V Switches with screwless terminals and rocker with clip-on fastening. The terminals are for max 2 rigid
wires. Flush mounting on a smooth surface IP21.
Type EAN Description Package
1061U 6410021060114 1-gang 1-way switch, Jussi, no X-terminals 10/100
1066U 6410021060169 1-gang 2-way switch, Jussi, 2 X-terminals 10/100
1067U 6410021060176 1-gang intermediate switch, Jussi, 2 X-terminals 10/100
Flush mounting 2-gang switches, IP21
16AX/250 V Switches with screwless terminals and rocker with clip-on fastening. The terminals are for max 2 rigid
wires. No lamp possibility. Flush mounting on a smooth surface IP21.
Type EAN Description Package
1065U 6410021060152 2-gang 1-way switch, Jussi, no X-terminals 10/100
1065U.1 6410021060657 2-gang 1-way switch, Jussi, 2 X-terminals 10/100
10666U 6410021060183 2-gang 2-way switch, Jussi, no X-terminals 10/100
Flush mounting 3-gang switch, IP21
16AX/250 V Switch with screwless terminals and rocker with clip-on fastening. The terminals are for max 2 rigid
wires. No lamp possibility. Flush mounting on a smooth surface IP21.
Type EAN Description Package
10631U 6410021060190 3-gang 1-way switch, Jussi, no X-terminals 10/100
Flush mounting 2-pole switch, IP21
16AX/250 V Switch with screwless terminals and rocker with clip-on fastening. The terminals are for max 2 rigid
wires. Flush mounting on a smooth surface IP21.
Type EAN Description Package
1062U 6410021060121 2-pole 1-gang 1-way switch, Jussi, 2 X-terminals, "1/0" symbol 10/100
Flush mounting 2-pole switch, IP21
16AX/250 V Switch with screwless terminals and rocker with clip-on fastening. The terminals are for max 2 rigid
wires. Delivered with pilot light and red lens. Flush mounting on a smooth surface IP21.
Type EAN Description Package
1062UK 6410021060145 10/100
2-pole 1-gang 1-way switch, Jussi, no X-terminals, red lens,
"1/0" symbol, incl.lamp
