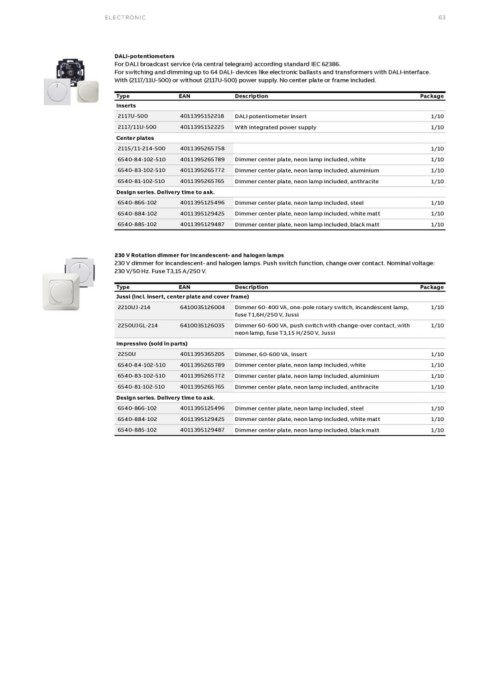

E lectronic 63

DALI-potentiometers
For DALI broadcast service (via central telegram) according standard IEC 62386.
For switching and dimming up to 64 DALI- devices like electronic ballasts and transformers with DALI-interface.
With (2117/11U-500) or without (2117U-500) power supply. No center plate or frame included.

Type EAN Description Package
Inserts
DALI potentiometer insert 1/10
2117U-500 4011395152218 With integrated power supply 1/10

2117/11U-500 4011395152225 Dimmer center plate, neon lamp included, white 1/10
Dimmer center plate, neon lamp included, aluminium 1/10
Center plates Dimmer center plate, neon lamp included, anthracite 1/10
1/10
2115/11-214-500 4011395265758 Dimmer center plate, neon lamp included, steel
Dimmer center plate, neon lamp included, white matt 1/10
6540-84-102-510 4011395265789 Dimmer center plate, neon lamp included, black matt 1/10
1/10
6540-83-102-510 4011395265772

6540-81-102-510 4011395265765

Design series. Delivery time to ask.

6540-866-102 4011395125496

6540-884-102 4011395129425

6540-885-102 4011395129487

230 V Rotation dimmer for incandescent- and halogen lamps
230 V dimmer for incandescent- and halogen lamps. Push switch function, change over contact. Nominal voltage:
230 V/50 Hz. Fuse T3,15 A/250 V.

Type EAN Description Package

Jussi (incl. insert, center plate and cover frame) 1/10

2210UJ-214 6410035126004 Dimmer 60-400 VA, one-pole rotary switch, incandescent lamp, 1/10
fuse T1,6H/250 V, Jussi
1/10
2250UJGL-214 6410035126035 Dimmer 60-600 VA, push switch with change-over contact, with 1/10
neon lamp, fuse T3,15 H/250 V, Jussi 1/10
1/10
Impressivo (sold in parts)
1/10
2250U 4011395365205 Dimmer, 60-600 VA, insert 1/10
1/10
6540-84-102-510 4011395265789 Dimmer center plate, neon lamp included, white

6540-83-102-510 4011395265772 Dimmer center plate, neon lamp included, aluminium

6540-81-102-510 4011395265765 Dimmer center plate, neon lamp included, anthracite

Design series. Delivery time to ask.

6540-866-102 4011395125496 Dimmer center plate, neon lamp included, steel

6540-884-102 4011395129425 Dimmer center plate, neon lamp included, white matt

6540-885-102 4011395129487 Dimmer center plate, neon lamp included, black matt
