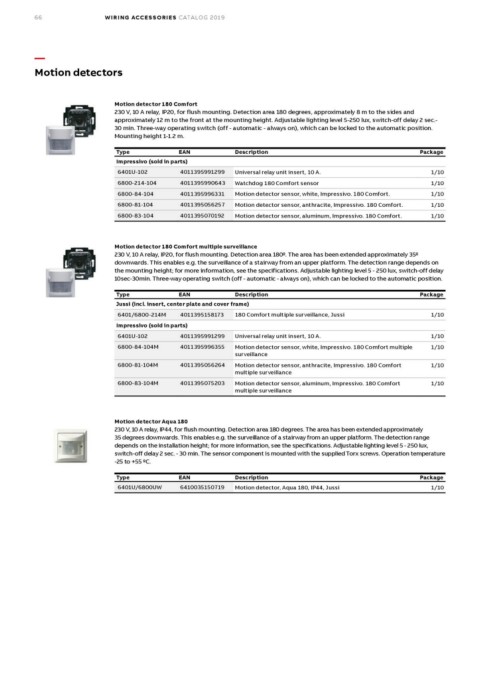

66 WIRING ACCESSORIES CATALOG 2019

—
Motion detectors

Motion detector 180 Comfort
230 V, 10 A relay, IP20, for flush mounting. Detection area 180 degrees, approximately 8 m to the sides and
approximately 12 m to the front at the mounting height. Adjustable lighting level 5-250 lux, switch-off delay 2 sec.-
30 min. Three-way operating switch (off - automatic - always on), which can be locked to the automatic position.
Mounting height 1-1.2 m.

Type EAN Description Package

Impressivo (sold in parts) Universal relay unit insert, 10 A. 1/10
Watchdog 180 Comfort sensor 1/10
6401U-102 4011395991299 Motion detector sensor, white, Impressivo. 180 Comfort. 1/10
Motion detector sensor, anthracite, Impressivo. 180 Comfort. 1/10
6800-214-104 4011395990643 Motion detector sensor, aluminum, Impressivo. 180 Comfort. 1/10

6800-84-104 4011395996331

6800-81-104 4011395056257

6800-83-104 4011395070192

Motion detector 180 Comfort multiple surveillance
230 V, 10 A relay, IP20, for flush mounting. Detection area 180º. The area has been extended approximately 35º
downwards. This enables e.g. the surveillance of a stairway from an upper platform. The detection range depends on
the mounting height; for more information, see the specifications. Adjustable lighting level 5 - 250 lux, switch-off delay
10sec-30min. Three-way operating switch (off - automatic - always on), which can be locked to the automatic position.

Type EAN Description Package

Jussi (incl. insert, center plate and cover frame) 1/10

6401/6800-214M 4011395158173 180 Comfort multiple surveillance, Jussi 1/10
1/10
Impressivo (sold in parts) 1/10
1/10
6401U-102 4011395991299 Universal relay unit insert, 10 A.

6800-84-104M 4011395996355 Motion detector sensor, white, Impressivo. 180 Comfort multiple
surveillance

6800-81-104M 4011395056264 Motion detector sensor, anthracite, Impressivo. 180 Comfort
multiple surveillance

6800-83-104M 4011395075203 Motion detector sensor, aluminum, Impressivo. 180 Comfort
multiple surveillance

Motion detector Aqua 180
230 V, 10 A relay, IP44, for flush mounting. Detection area 180 degrees. The area has been extended approximately
35 degrees downwards. This enables e.g. the surveillance of a stairway from an upper platform. The detection range
depends on the installation height; for more information, see the specifications. Adjustable lighting level 5 - 250 lux,
switch-off delay 2 sec. - 30 min. The sensor component is mounted with the supplied Torx screws. Operation temperature
-25 to +55 ºC.

Type EAN Description Package
6401U/6800UW 6410035150719 Motion detector, Aqua 180, IP44, Jussi 1/10
