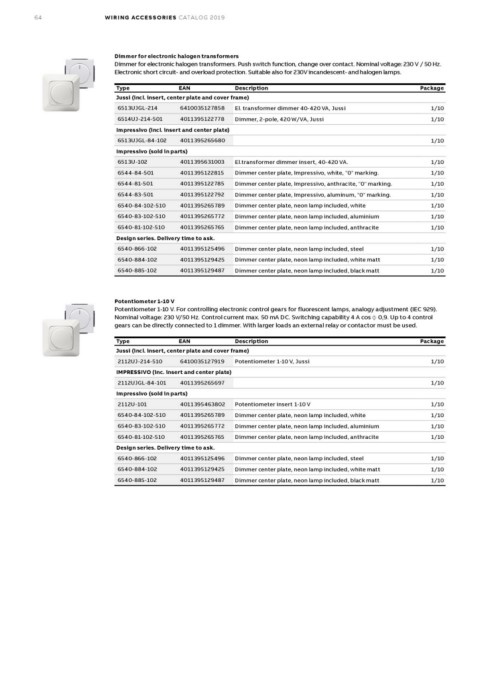

64 WIRING ACCESSORIES CATALOG 2019

Dimmer for electronic halogen transformers
Dimmer for electronic halogen transformers. Push switch function, change over contact. Nominal voltage: 230 V / 50 Hz.
Electronic short circuit- and overload protection. Suitable also for 230V incandescent- and halogen lamps.

Type EAN Description Package

Jussi (incl. insert, center plate and cover frame) 1/10
1/10
6513UJGL-214 6410035127858 El. transformer dimmer 40-420 VA, Jussi
1/10
6514UJ-214-501 4011395122778 Dimmer, 2-pole, 420 W/VA, Jussi
1/10
Impressivo (incl. insert and center plate) 1/10
1/10
6513UJGL-84-102 4011395265680 1/10
1/10
Impressivo (sold in parts) 1/10
1/10
6513U-102 4011395631003 El.transformer dimmer insert, 40-420 VA.
1/10
6544-84-501 4011395122815 Dimmer center plate, Impressivo, white, "0" marking. 1/10
1/10
6544-81-501 4011395122785 Dimmer center plate, Impressivo, anthracite, "0" marking.

6544-83-501 4011395122792 Dimmer center plate, Impressivo, aluminum, "0" marking.

6540-84-102-510 4011395265789 Dimmer center plate, neon lamp included, white

6540-83-102-510 4011395265772 Dimmer center plate, neon lamp included, aluminium

6540-81-102-510 4011395265765 Dimmer center plate, neon lamp included, anthracite

Design series. Delivery time to ask.

6540-866-102 4011395125496 Dimmer center plate, neon lamp included, steel

6540-884-102 4011395129425 Dimmer center plate, neon lamp included, white matt

6540-885-102 4011395129487 Dimmer center plate, neon lamp included, black matt

Potentiometer 1-10 V
Potentiometer 1-10 V. For controlling electronic control gears for fluorescent lamps, analogy adjustment (IEC 929).
Nominal voltage: 230 V/50 Hz. Control current max. 50 mA DC. Switching capability 4 A cos φ 0,9. Up to 4 control
gears can be directly connected to 1 dimmer. With larger loads an external relay or contactor must be used.

Type EAN Description Package

Jussi (incl. insert, center plate and cover frame) 1/10

2112UJ-214-510 6410035127919 Potentiometer 1-10 V, Jussi 1/10

IMPRESSIVO (inc. insert and center plate) 1/10
1/10
2112UJGL-84-101 4011395265697 1/10
1/10
Impressivo (sold in parts)
1/10
2112U-101 4011395463802 Potentiometer insert 1-10 V 1/10
1/10
6540-84-102-510 4011395265789 Dimmer center plate, neon lamp included, white

6540-83-102-510 4011395265772 Dimmer center plate, neon lamp included, aluminium

6540-81-102-510 4011395265765 Dimmer center plate, neon lamp included, anthracite

Design series. Delivery time to ask.

6540-866-102 4011395125496 Dimmer center plate, neon lamp included, steel

6540-884-102 4011395129425 Dimmer center plate, neon lamp included, white matt

6540-885-102 4011395129487 Dimmer center plate, neon lamp included, black matt
