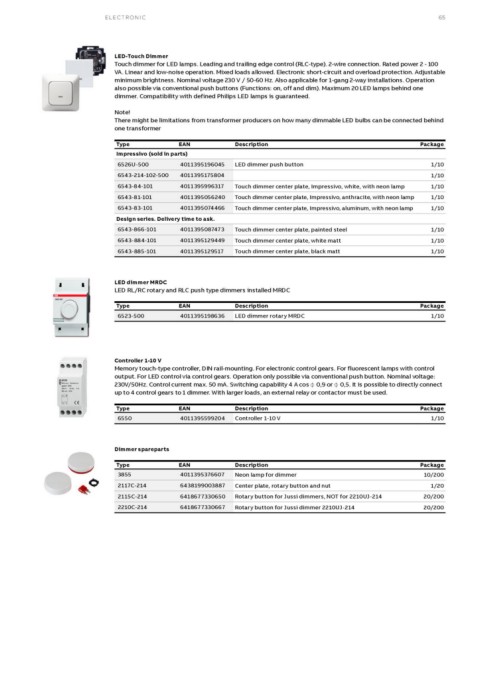

E lectronic 65

LED-Touch Dimmer
Touch dimmer for LED lamps. Leading and trailing edge control (RLC-type). 2-wire connection. Rated power 2 - 100
VA. Linear and low-noise operation. Mixed loads allowed. Electronic short-circuit and overload protection. Adjustable
minimum brightness. Nominal voltage 230 V / 50-60 Hz. Also applicable for 1-gang 2-way installations. Operation
also possible via conventional push buttons (Functions: on, off and dim). Maximum 20 LED lamps behind one
dimmer. Compatibility with defined Philips LED lamps is guaranteed.

Note!
There might be limitations from transformer producers on how many dimmable LED bulbs can be connected behind
one transformer

Type EAN Description Package

Impressivo (sold in parts)

6526U-500 4011395196045 LED dimmer push button 1/10
1/10
6543-214-102-500 4011395175804 Touch dimmer center plate, Impressivo, white, with neon lamp 1/10
Touch dimmer center plate, Impressivo, anthracite, with neon lamp 1/10
6543-84-101 4011395996317 Touch dimmer center plate, Impressivo, aluminum, with neon lamp 1/10

6543-81-101 4011395056240

6543-83-101 4011395074466

Design series. Delivery time to ask.

6543-866-101 4011395087473 Touch dimmer center plate, painted steel 1/10
Touch dimmer center plate, white matt 1/10
6543-884-101 4011395129449 Touch dimmer center plate, black matt 1/10

6543-885-101 4011395129517

LED dimmer MRDC
LED RL/RC rotary and RLC push type dimmers installed MRDC

Type EAN Description Package
6523-500 4011395198636 LED dimmer rotary MRDC 1/10

Controller 1-10 V
Memory touch-type controller, DIN rail-mounting. For electronic control gears. For fluorescent lamps with control
output. For LED control via control gears. Operation only possible via conventional push button. Nominal voltage:
230V/50Hz. Control current max. 50 mA. Switching capability 4 A cos φ 0,9 or φ 0,5. It is possible to directly connect
up to 4 control gears to 1 dimmer. With larger loads, an external relay or contactor must be used.

Type EAN Description Package
6550 4011395599204 Controller 1-10 V 1/10

Dimmer spareparts

Type EAN Description Package
3855 4011395376607 Neon lamp for dimmer 10/200
2117C-214 6438199003887 Center plate, rotary button and nut 1/20
2115C-214 6418677330650 Rotary button for Jussi dimmers, NOT for 2210UJ-214 20/200
2210C-214 6418677330667 Rotary button for Jussi dimmer 2210UJ-214 20/200
