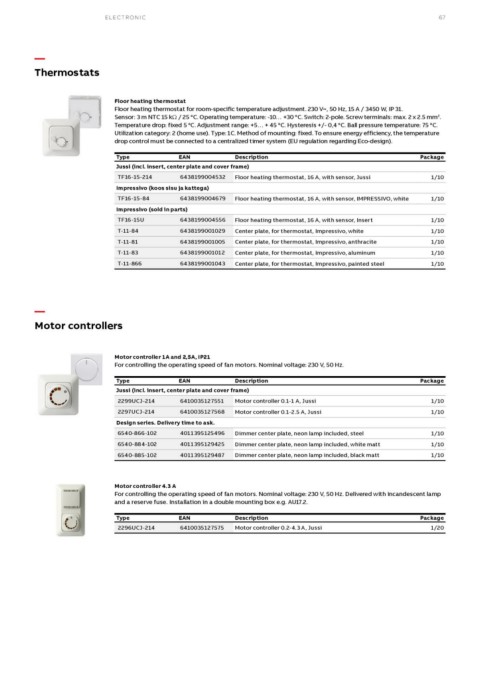

E lectronic 67

—
Thermostats

Floor heating thermostat
Floor heating thermostat for room-specific temperature adjustment. 230 V~, 50 Hz, 15 A / 3450 W, IP 31.
Sensor: 3 m NTC 15 kΩ / 25 °C. Operating temperature: -10… +30 °C. Switch: 2-pole. Screw terminals: max. 2 x 2.5 mm2.
Temperature drop: fixed 5 °C. Adjustment range: +5… + 45 °C. Hysteresis +/- 0,4 °C. Ball pressure temperature: 75 °C.
Utilization category: 2 (home use). Type: 1C. Method of mounting: fixed. To ensure energy efficiency, the temperature
drop control must be connected to a centralized timer system (EU regulation regarding Eco-design).

Type EAN Description Package

Jussi (incl. insert, center plate and cover frame) 1/10

TF16-15-214 6438199004532 Floor heating thermostat, 16 A, with sensor, Jussi 1/10

Impressivo (koos sisu ja kattega) 1/10
1/10
TF16-15-84 6438199004679 Floor heating thermostat, 16 A, with sensor, IMPRESSIVO, white 1/10
1/10
Impressivo (sold in parts) 1/10

TF16-15U 6438199004556 Floor heating thermostat, 16 A, with sensor, Insert

T-11-84 6438199001029 Center plate, for thermostat, Impressivo, white

T-11-81 6438199001005 Center plate, for thermostat, Impressivo, anthracite

T-11-83 6438199001012 Center plate, for thermostat, Impressivo, aluminum

T-11-866 6438199001043 Center plate, for thermostat, Impressivo, painted steel

—
Motor controllers

Motor controller 1A and 2,5A, IP21
For controlling the operating speed of fan motors. Nominal voltage: 230 V, 50 Hz.

Type EAN Description Package

Jussi (incl. insert, center plate and cover frame) 1/10
1/10
2299UCJ-214 6410035127551 Motor controller 0.1-1 A, Jussi
1/10
2297UCJ-214 6410035127568 Motor controller 0.1-2.5 A, Jussi 1/10
1/10
Design series. Delivery time to ask.

6540-866-102 4011395125496 Dimmer center plate, neon lamp included, steel

6540-884-102 4011395129425 Dimmer center plate, neon lamp included, white matt

6540-885-102 4011395129487 Dimmer center plate, neon lamp included, black matt

Motor controller 4.3 A
For controlling the operating speed of fan motors. Nominal voltage: 230 V, 50 Hz. Delivered with incandescent lamp
and a reserve fuse. Installation in a double mounting box e.g. AU17.2.

Type EAN Description Package
2296UCJ-214 6410035127575 Motor controller 0.2-4.3 A, Jussi 1/20
