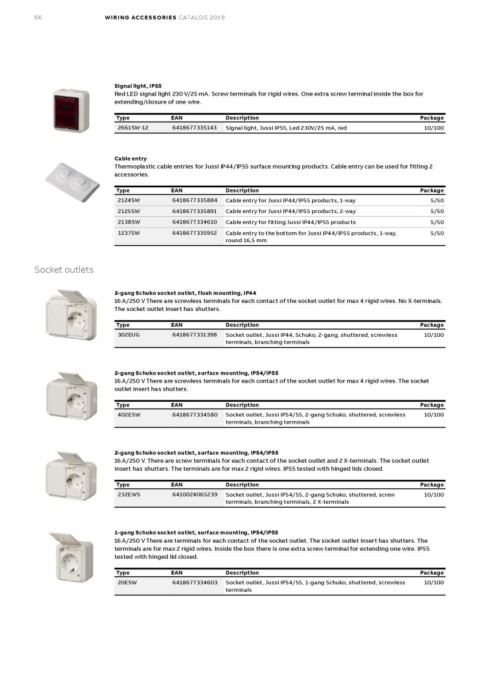

56 WIRING ACCESSORIES CATALOG 2019

Signal light, IP55
Red LED signal light 230 V/25 mA. Screw terminals for rigid wires. One extra screw terminal inside the box for
extending/closure of one wire.

Type EAN Description Package
2661SW-12 6418677335143 Signal light, Jussi IP55, Led 230V/25 mA, red 10/100

Cable entry
Thermoplastic cable entries for Jussi IP44/IP55 surface mounting products. Cable entry can be used for fitting 2
accessories.

Type EAN Description Package
2124SW 6418677335884 Cable entry for Jussi IP44/IP55 products, 1-way 5/50
2125SW 6418677335891 5/50
2138SW 6418677334610 Cable entry for Jussi IP44/IP55 products, 2-way 5/50
1237SW 6418677335952 5/50
Cable entry for fitting Jussi IP44/IP55 products

Cable entry to the bottom for Jussi IP44/IP55 products, 1-way,
round 16,5 mm

Socket outlets

2-gang Schuko socket outlet, flush mounting, IP44
16 A/250 V There are screwless terminals for each contact of the socket outlet for max 4 rigid wires. No X-terminals.
The socket outlet insert has shutters.

Type EAN Description Package
302EUG 6418677331398 10/100
Socket outlet, Jussi IP44, Schuko, 2-gang, shuttered, screwless
terminals, branching terminals

2-gang Schuko socket outlet, surface mounting, IP54/IP55
16 A/250 V There are screwless terminals for each contact of the socket outlet for max 4 rigid wires. The socket
outlet insert has shutters.

Type EAN Description Package
402ESW 6418677334580 10/100
Socket outlet, Jussi IP54/55, 2-gang Schuko, shuttered, screwless
terminals, branching terminals

2-gang Schuko socket outlet, surface mounting, IP54/IP55
16 A/250 V. There are screw terminals for each contact of the socket outlet and 2 X-terminals. The socket outlet
insert has shutters. The terminals are for max 2 rigid wires. IP55 tested with hinged lids closed.

Type EAN Description Package
232EWS 6410024065239 10/100
Socket outlet, Jussi IP54/55, 2-gang Schuko, shuttered, screw
terminals, branching terminals, 2 X-terminals

1-gang Schuko socket outlet, surface mounting, IP54/IP55
16 A/250 V There are terminals for each contact of the socket outlet. The socket outlet insert has shutters. The
terminals are for max 2 rigid wires. Inside the box there is one extra screw terminal for extending one wire. IP55
tested with hinged lid closed.

Type EAN Description Package
20ESW 6418677334603 10/100
Socket outlet, Jussi IP54/55, 1-gang Schuko, shuttered, screwless
terminals
