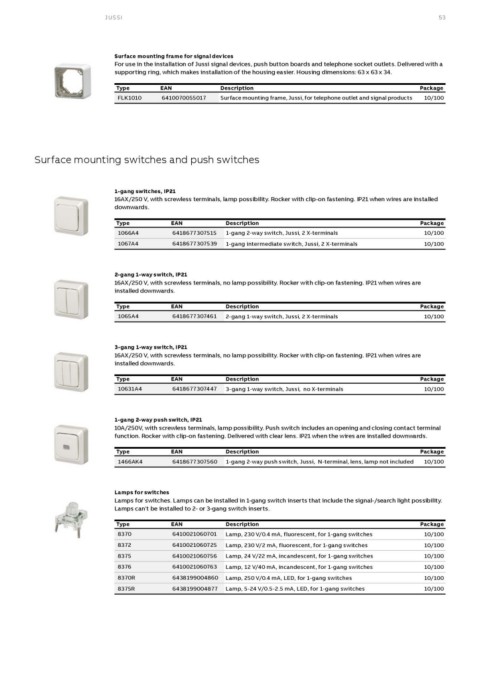

JUSSI 53

Surface mounting frame for signal devices
For use in the installation of Jussi signal devices, push button boards and telephone socket outlets. Delivered with a
supporting ring, which makes installation of the housing easier. Housing dimensions: 63 x 63 x 34.

Type EAN Description Package
FLK1010 6410070055017
Surface mounting frame, Jussi, for telephone outlet and signal products 10/100

Surface mounting switches and push switches

1-gang switches, IP21
16AX/250 V, with screwless terminals, lamp possibility. Rocker with clip-on fastening. IP21 when wires are installed
downwards.

Type EAN Description Package
1066A4 6418677307515 1-gang 2-way switch, Jussi, 2 X-terminals 10/100
1067A4 6418677307539 1-gang intermediate switch, Jussi, 2 X-terminals 10/100

2-gang 1-way switch, IP21
16AX/250 V, with screwless terminals, no lamp possibility. Rocker with clip-on fastening. IP21 when wires are
installed downwards.

Type EAN Description Package
1065A4 6418677307461 2-gang 1-way switch, Jussi, 2 X-terminals 10/100

3-gang 1-way switch, IP21
16AX/250 V, with screwless terminals, no lamp possibility. Rocker with clip-on fastening. IP21 when wires are
installed downwards.

Type EAN Description Package
10631A4 6418677307447 3-gang 1-way switch, Jussi, no X-terminals 10/100

1-gang 2-way push switch, IP21
10A/250V, with screwless terminals, lamp possibility. Push switch includes an opening and closing contact terminal
function. Rocker with clip-on fastening. Delivered with clear lens. IP21 when the wires are installed downwards.

Type EAN Description Package
1466AK4
6418677307560 1-gang 2-way push switch, Jussi, N-terminal, lens, lamp not included 10/100

Lamps for switches
Lamps for switches. Lamps can be installed in 1-gang switch inserts that include the signal-/search light possibility.
Lamps can't be installed to 2- or 3-gang switch inserts.

Type EAN Description Package
8370 6410021060701 Lamp, 230 V/0.4 mA, fluorescent, for 1-gang switches 10/100
8372 6410021060725 Lamp, 230 V/2 mA, fluorescent, for 1-gang switches 10/100
8375 6410021060756 Lamp, 24 V/22 mA, incandescent, for 1-gang switches 10/100
8376 6410021060763 Lamp, 12 V/40 mA, incandescent, for 1-gang switches 10/100
8370R 6438199004860 Lamp, 250 V/0.4 mA, LED, for 1-gang switches 10/100
8375R 6438199004877 Lamp, 5-24 V/0.5-2.5 mA, LED, for 1-gang switches 10/100
