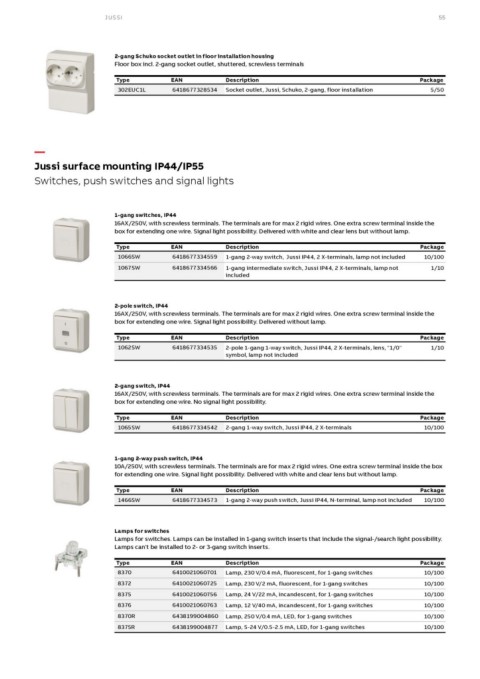

JUSSI 55

2-gang Schuko socket outlet in floor installation housing Package
Floor box incl. 2-gang socket outlet, shuttered, screwless terminals 5/50

Type EAN Description
302EUC1L
6418677328534 Socket outlet, Jussi, Schuko, 2-gang, floor installation

—
Jussi surface mounting IP44/IP55
Switches, push switches and signal lights

1-gang switches, IP44
16AX/250V, with screwless terminals. The terminals are for max 2 rigid wires. One extra screw terminal inside the
box for extending one wire. Signal light possibility. Delivered with white and clear lens but without lamp.

Type EAN Description Package
1066SW 6418677334559 10/100
1067SW 6418677334566 1-gang 2-way switch, Jussi IP44, 2 X-terminals, lamp not included 1/10

1-gang intermediate switch, Jussi IP44, 2 X-terminals, lamp not
included

2-pole switch, IP44
16AX/250V, with screwless terminals. The terminals are for max 2 rigid wires. One extra screw terminal inside the
box for extending one wire. Signal light possibility. Delivered without lamp.

Type EAN Description Package
1062SW 6418677334535 1/10
2-pole 1-gang 1-way switch, Jussi IP44, 2 X-terminals, lens, "1/0"
symbol, lamp not included

2-gang switch, IP44
16AX/250V, with screwless terminals. The terminals are for max 2 rigid wires. One extra screw terminal inside the
box for extending one wire. No signal light possibility.

Type EAN Description Package
1065SW 10/100
6418677334542 2-gang 1-way switch, Jussi IP44, 2 X-terminals

1-gang 2-way push switch, IP44
10A/250V, with screwless terminals. The terminals are for max 2 rigid wires. One extra screw terminal inside the box
for extending one wire. Signal light possibility. Delivered with white and clear lens but without lamp.

Type EAN Description Package
1466SW
6418677334573 1-gang 2-way push switch, Jussi IP44, N-terminal, lamp not included 10/100

Lamps for switches
Lamps for switches. Lamps can be installed in 1-gang switch inserts that include the signal-/search light possibility.
Lamps can't be installed to 2- or 3-gang switch inserts.

Type EAN Description Package
8370 6410021060701 Lamp, 230 V/0.4 mA, fluorescent, for 1-gang switches 10/100
8372 6410021060725 Lamp, 230 V/2 mA, fluorescent, for 1-gang switches 10/100
8375 6410021060756 Lamp, 24 V/22 mA, incandescent, for 1-gang switches 10/100
8376 6410021060763 Lamp, 12 V/40 mA, incandescent, for 1-gang switches 10/100
8370R 6438199004860 Lamp, 250 V/0.4 mA, LED, for 1-gang switches 10/100
8375R 6438199004877 Lamp, 5-24 V/0.5-2.5 mA, LED, for 1-gang switches 10/100
